Payload connector

In the JuniX kit, there is a dedicated IDC‑06MR connector for attaching various spacecraft payloads:

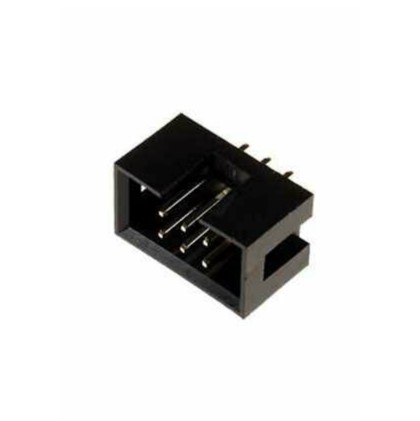

Picture 1. IDC‑06MR connector

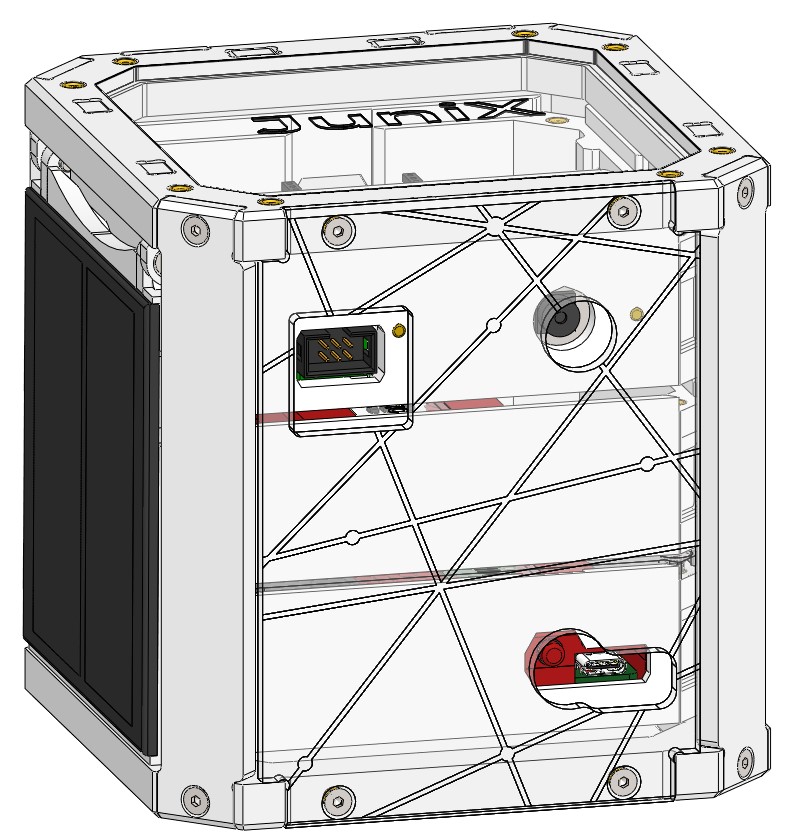

It is located to the left of the kit’s camera:

Picture 2. Connector location

For your payload to operate correctly, connect it according to the pinout of this connector:

1) GND;

2) Payload_LED;

3) SCL;

4) SDA;

5) VCC;

6) Резерв.

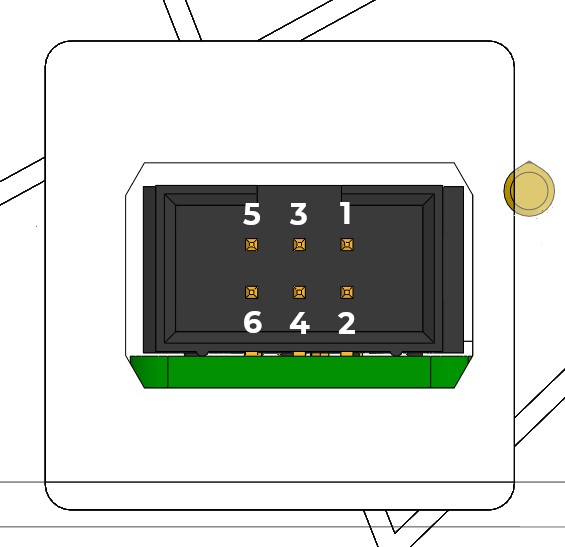

Picture 3. Connector pinout
