Software

NotePad++ Development Environment​

FCC Flight Control Center​

FCC Software (Version v0.3.4).

Updates for on-board computer​

To install the update, go to the "Settings" page in the web interface (login and password admin) and download the appropriate files using the posted descriptions.

  • Schsat-GUI The current firmware version of the GUI of the on-board computer Web interface (from 30.07.2018);
  • Libschsat Updating the standard library of functions;
  • Libschsat_Ard Updating the standard library of functions with functions for controlling Arduino (beta).

Library for Arduino​

To interact with the OrbiCraft constructor and Arduino, you need to install the following library in the [Arduino IDE] environment (https://www.arduino.cc/en/software "Arduino IDE"). Library for interaction between Arduino and the OrbiCraft constructor

Installing the mirror of this wiki on on-board computer​

For older versions of the constructor (before 07.2017), first install the web server packages(Light-server and Web-socket)

Schsat-Wiki A local copy of the Wiki for the web interface of the designer is available at: http://192.168.42.1:8000 (dated 05/23/2018)

Drivers​

USB-RS485 Cable Driver.

Running NotePad++ under other operating systems​

Installing NotePad++ on Unix and Mac systems​

1) Download NotePad++ from the link on this page.

2) Rename the folder “Notepad++” so that all characters are in Latin and do not contain special characters (!#@, etc.), spaces and did not start with a digit.

3) Download Wine Stable

Ubuntu : https://wiki.winehq.org/Ubuntu

Mac: https://wiki.winehq.org/MacOS

Please note that the security settings on the macOS system must be removed, allowing you to install programs from third-party developers. To do this, go to “System Settings”- > “Protection and Security”, click on the lock and allow the use of programs downloaded from the App Store and from confirmed developers (Picture 1):

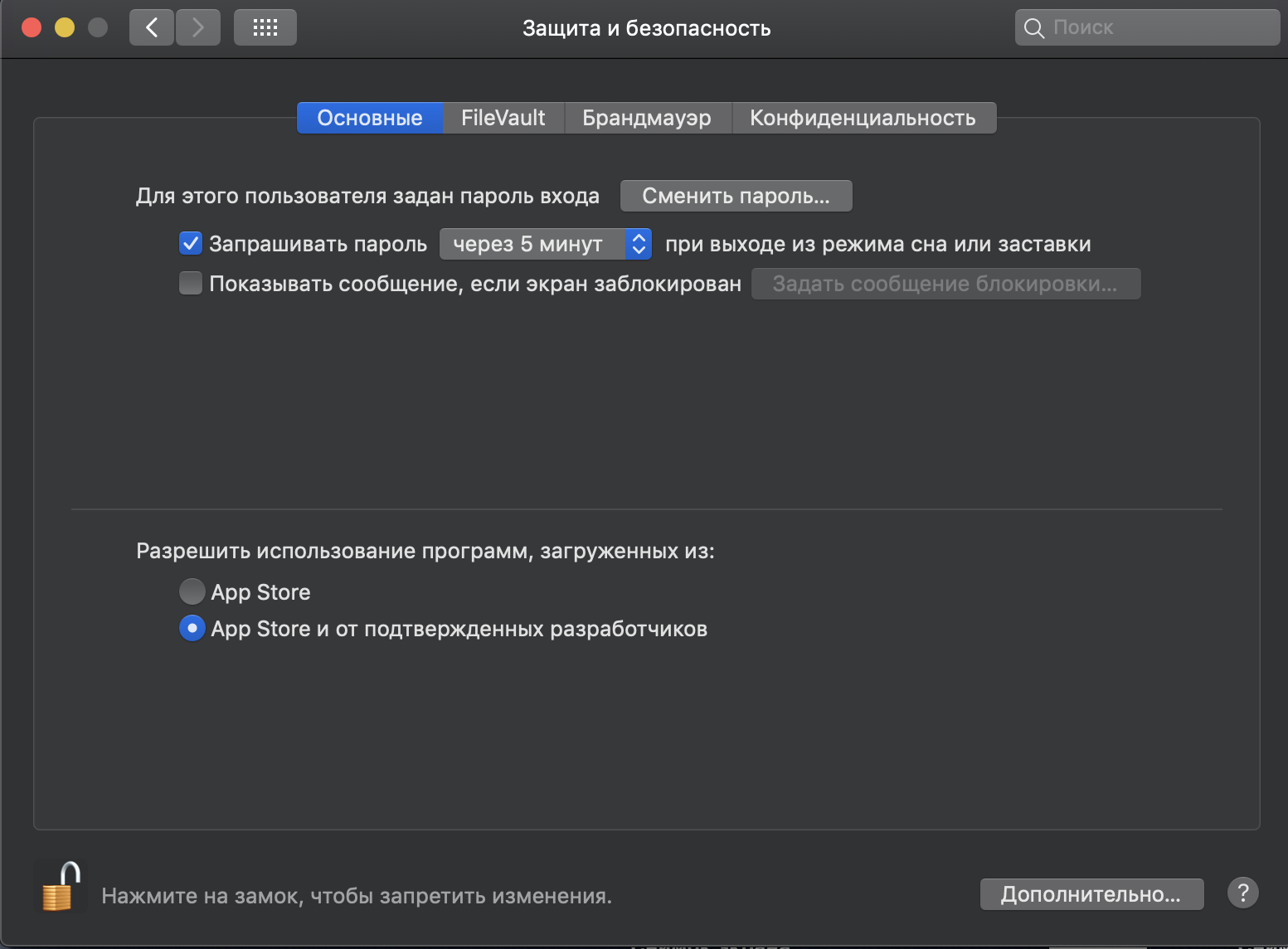

Permission to use programs in macOS

Picture 1. Permission to use programs in macOS

Also, for Wine to work successfully on macOS, you must install XQuartz: https://www.xquartz.org

4) Enter the renamed folder “Notepad++” and right-click on the file “notepad++.exe ”, then select “open in the Wine program” Note that the Wine program is a Windows emulator, so all the “hot” keyboard shortcuts there correspond to the system Windows (Ctrl+C instead of Command+C, etc.)
