OrbiX assembly instruction (uniaxial configuration)

Components required for assembly:

  • Lower part (uniaxial) – 1 pc.;
  • Middle part – 1 pc.;
  • Upper part – 1 pc.;
  • Transparent hemispheres – 2 pc.;
  • Screw М3х6 – 10 pc.;
  • Screw М3х10 – 8 pc.;
  • Screw М3х20 – 1 pc.;
  • Screw with ring.

Assembly order

  1. Connect the lower part of the housing to the middle one using four M3x10 screws (picture 1).

    Крепление нижней и средней частей конструктора

    Крепление нижней и средней частей конструктора

    Picture 1.

  2. Connect the upper part to the middle one using two M3x10 screws on the handle (picture 2).

    Крепление верхней и средней частей конструктора

    Крепление верхней и средней частей конструктора

    Picture 2.

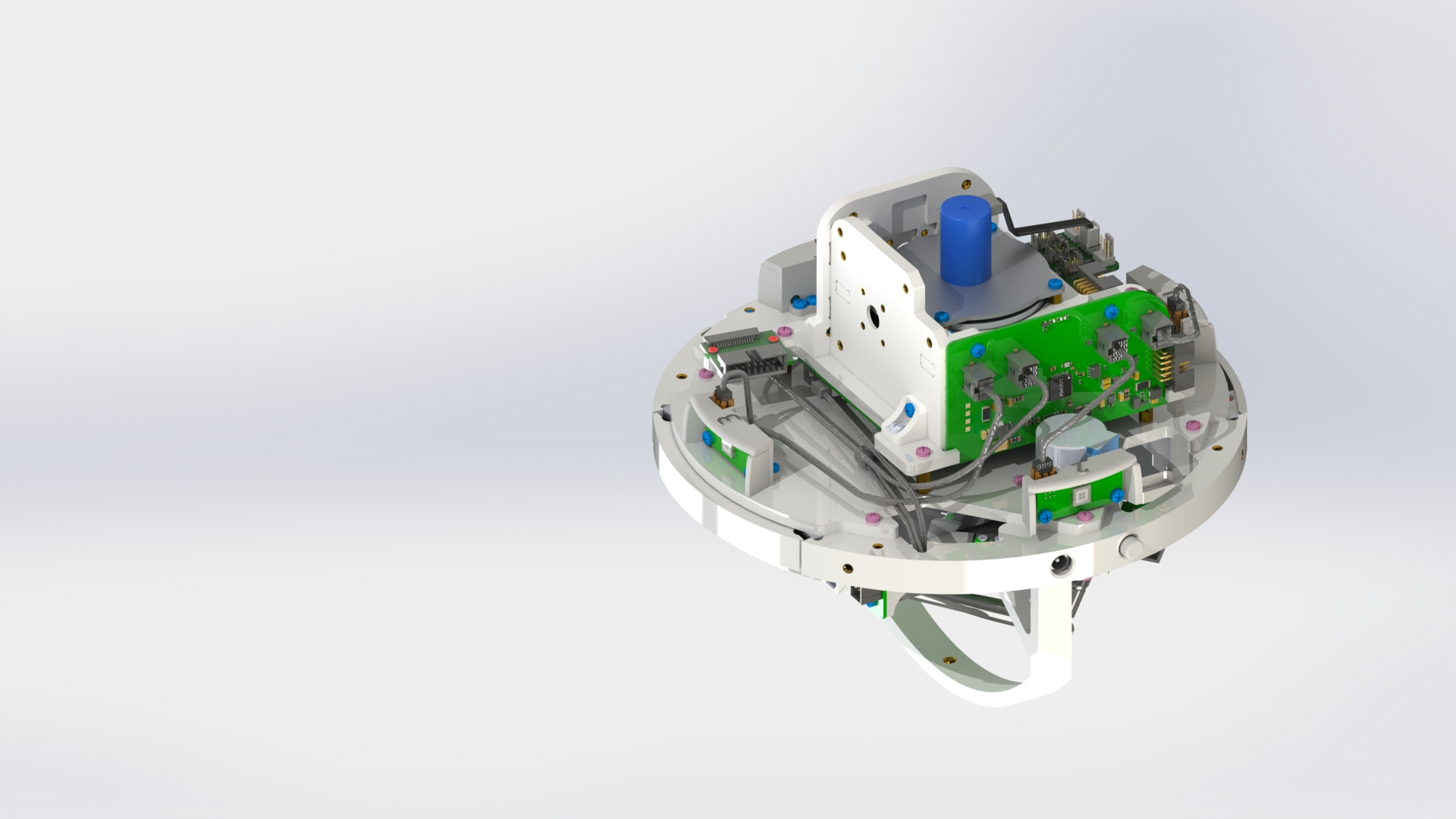

  3. On the lower part, alternately, from right to left, connect the solar sensors to the solar sensor board on the reaction wheel unit (picture 3).

    Подключение солнечных датчиков

    Подключение солнечных датчиков

    Подключение солнечных датчиков

    Подключение солнечных датчиков

    Picture 3.

  4. Connect the cables to the camera adapter board (picture 4).

    Подключение камеры

    Picture 4.

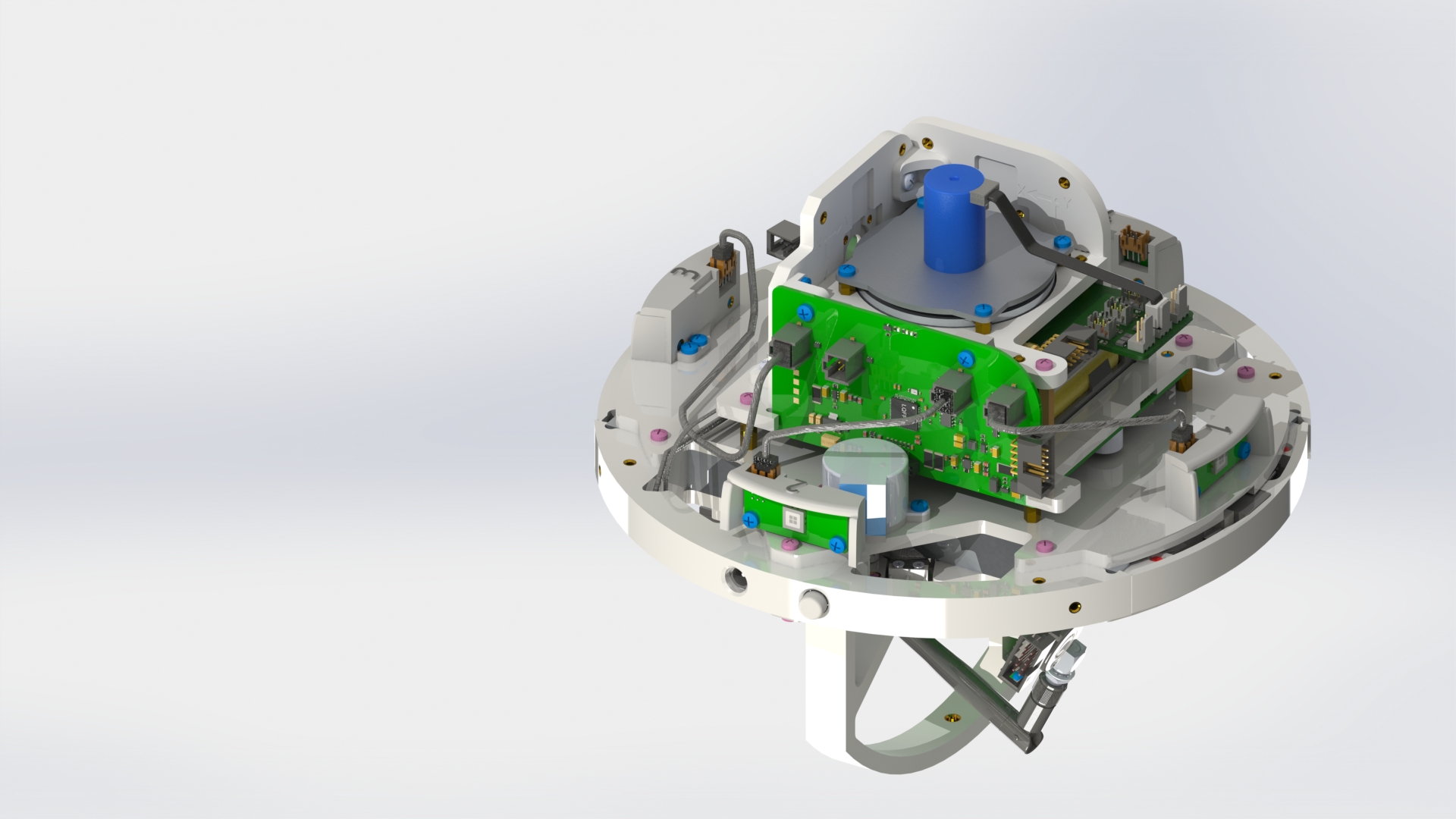

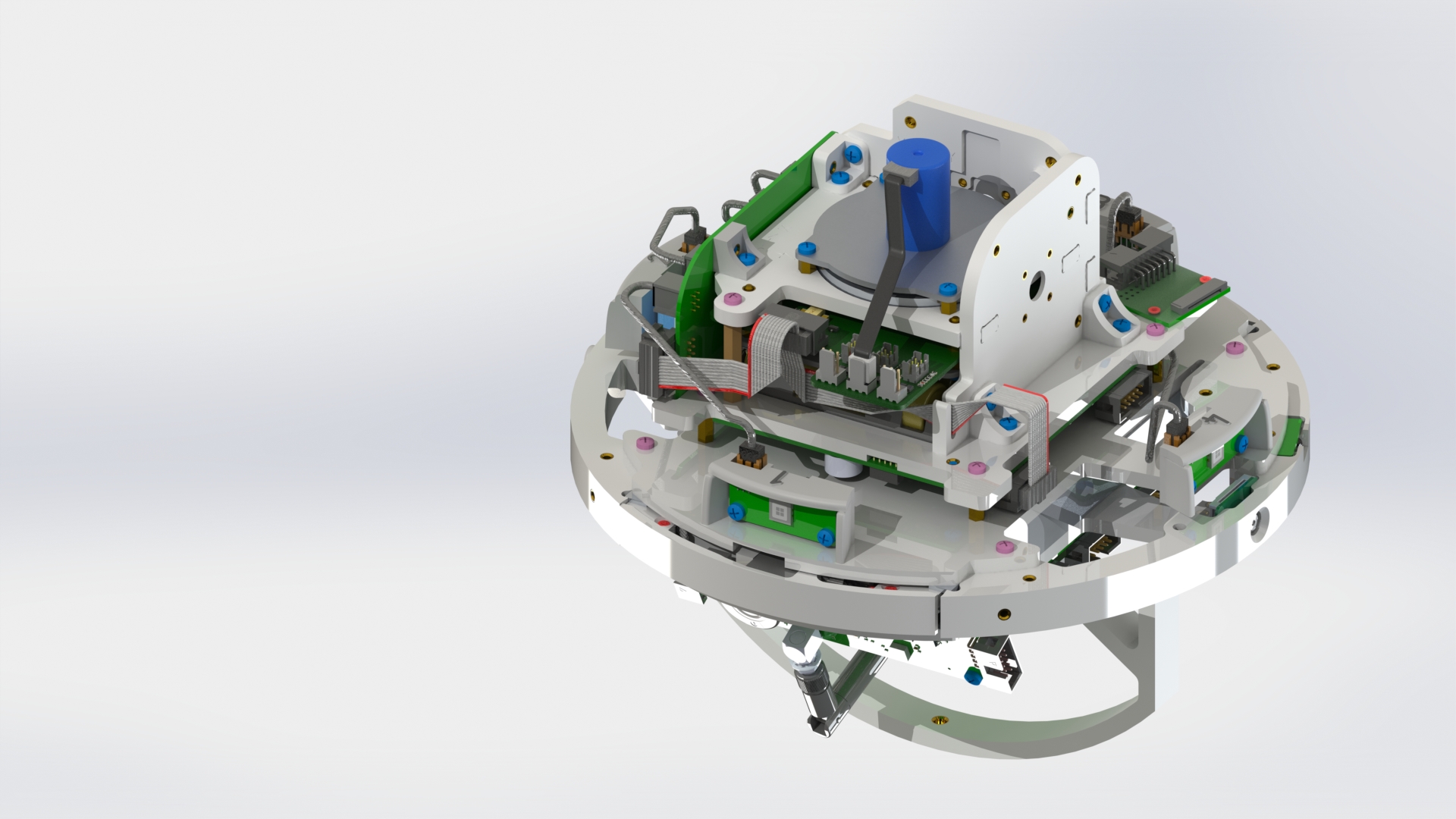

  5. Connect the power supply system boards, reaction wheel block and solar sensors with cables (picture 5).

    Подключение плат системы электропитания, управляющего двигателя-маховика и солнечных датчиков

    Picture 5.

  6. Connect the cables from the stepper motor to the stepper motor driver board (picture 6).

    Подключение шагового двигателя

    Подключение шагового двигателя

    Picture 6.

  7. Connect the cables of the solar panels to the solar panel board on the top (picture 7).

    Подключение солнечных панелей

    Подключение солнечных панелей

    Picture 7.

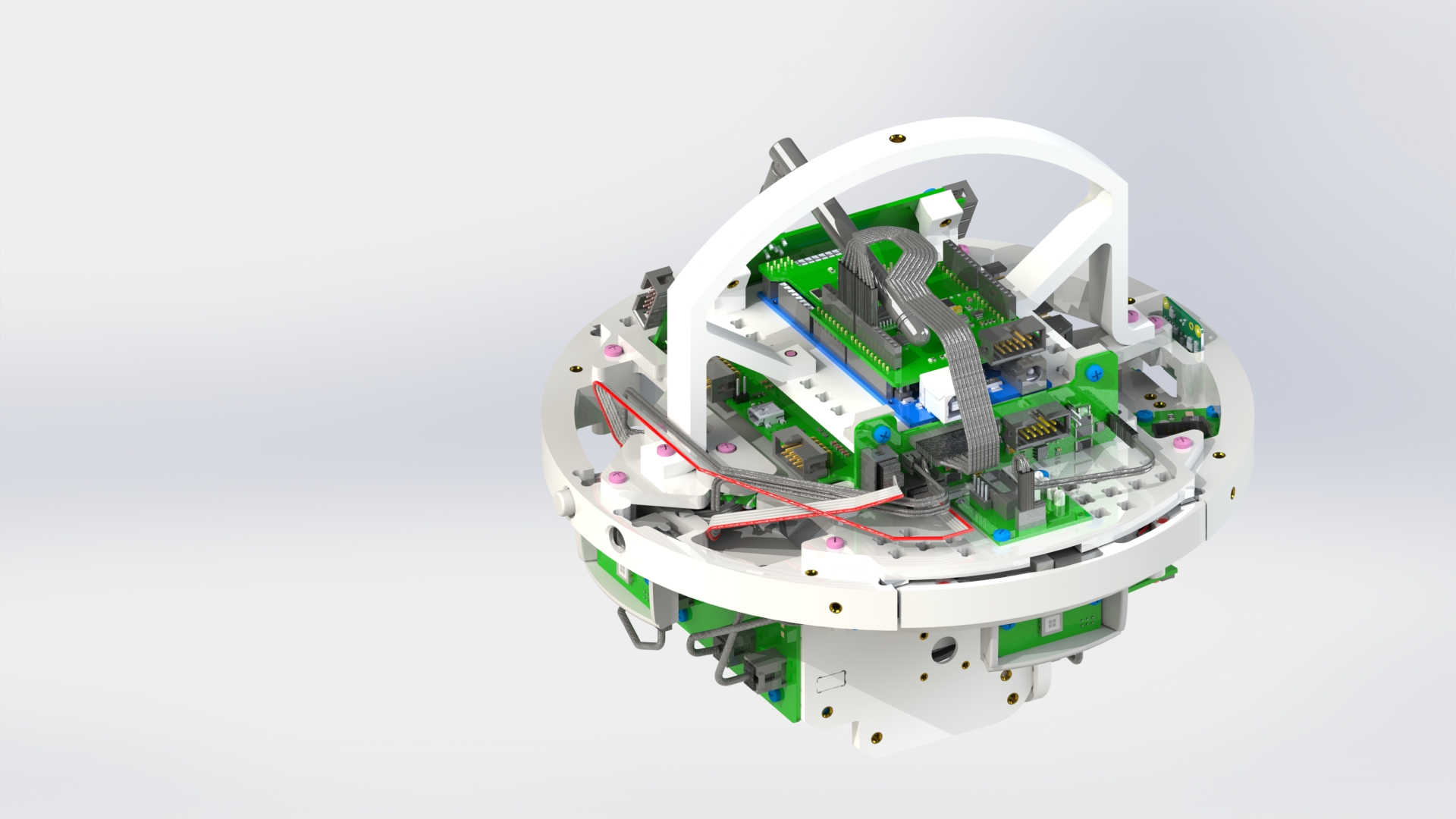

  8. Connect the payload shield with the solar panel board (picture 8).

    Подключение плат полезной нагрузки и солнечных панелей

    Подключение плат полезной нагрузки и солнечных панелей

    Picture 8.

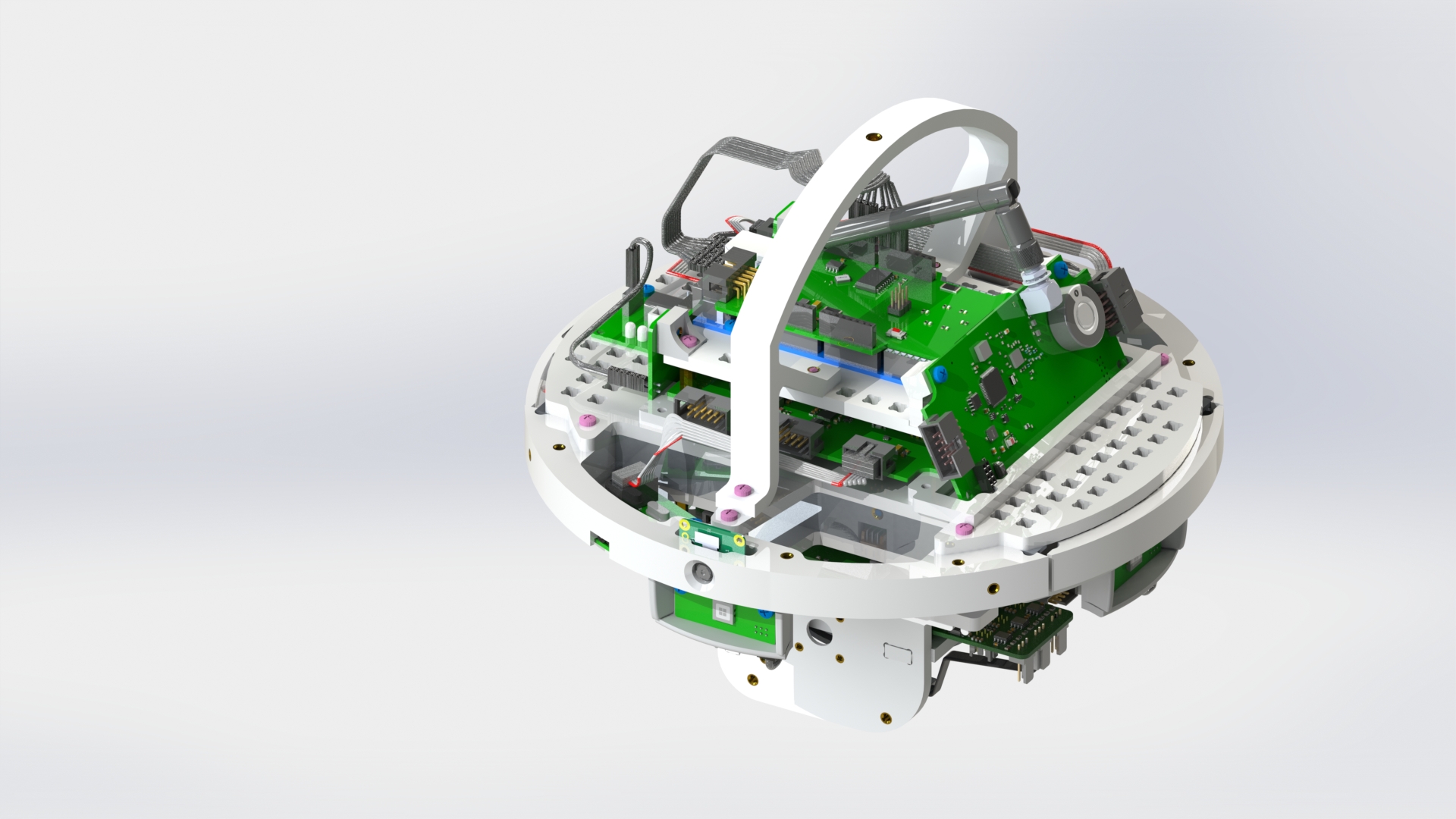

  9. Connect the HF cable to the board of the on-board computer (picture 9).

    Подключение модуля высокочастотной связи

    Подключение модуля высокочастотной связи

    Picture 9.

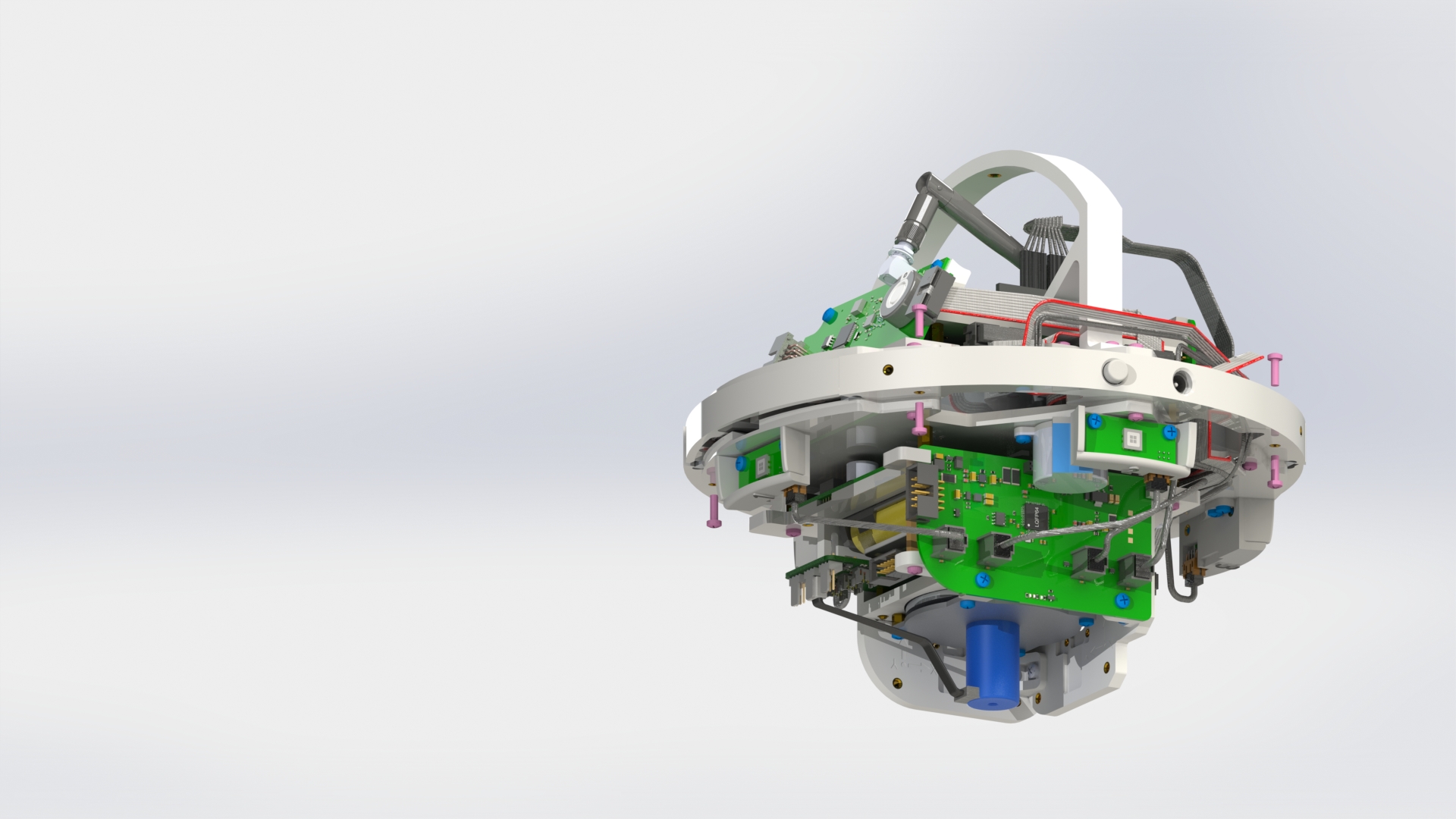

  10. On the sides of the upper and lower bases, insert four M3x10 screws, without tightening them completely until the end (picture 10).

    Установка креплений для полусфер

    Установка креплений для полусфер

    Picture 10.

  11. Install the lower hemisphere by placing it on the protruding screws and turning (picture 11).

    Установка нижней полусферы

    Установка нижней полусферы

    Picture 11.

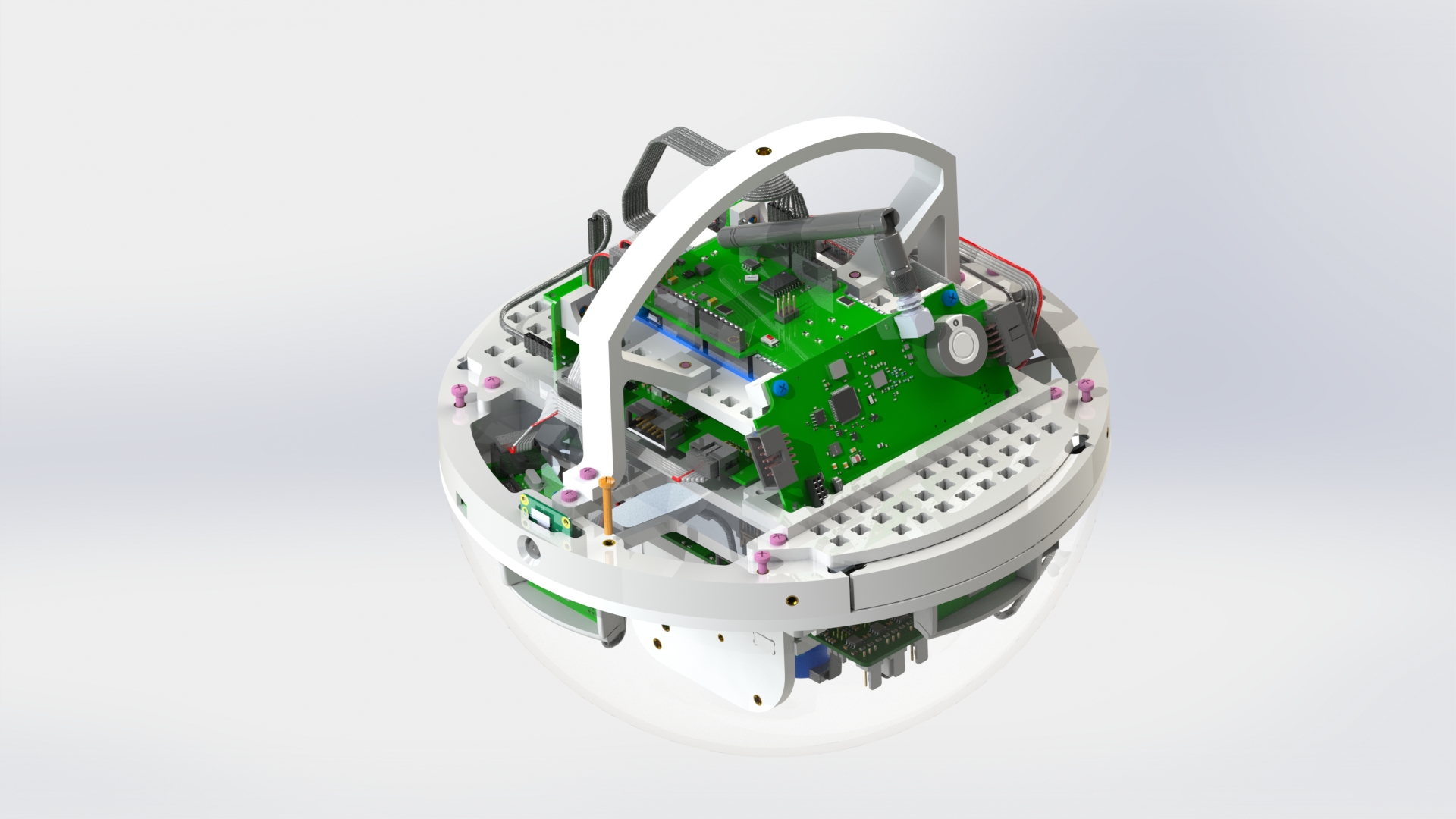

  12. Fix it with one M3x20 screw through the hole located on the back side, to the right of the camera (picture 12).

    Крепление нижней полусферы

    Крепление нижней полусферы

    Picture 12.

danger

You need to calibrate the white end switch. To do this, place the structure on the stand, facing the end switches towards you, and open the solar panels. When closing the solar panels, you should hear a characteristic click.

  • If you try to close the solar panels and they "disappear" too deeply into the housing, move the end switch away from you.
  • If the click occurs before the panels are aligned with the housing when closing the solar panels, move the end switch towards you.

Once the panels are aligned with the housing and the click occurs precisely at that moment, tighten the screw on the end switch to secure it.

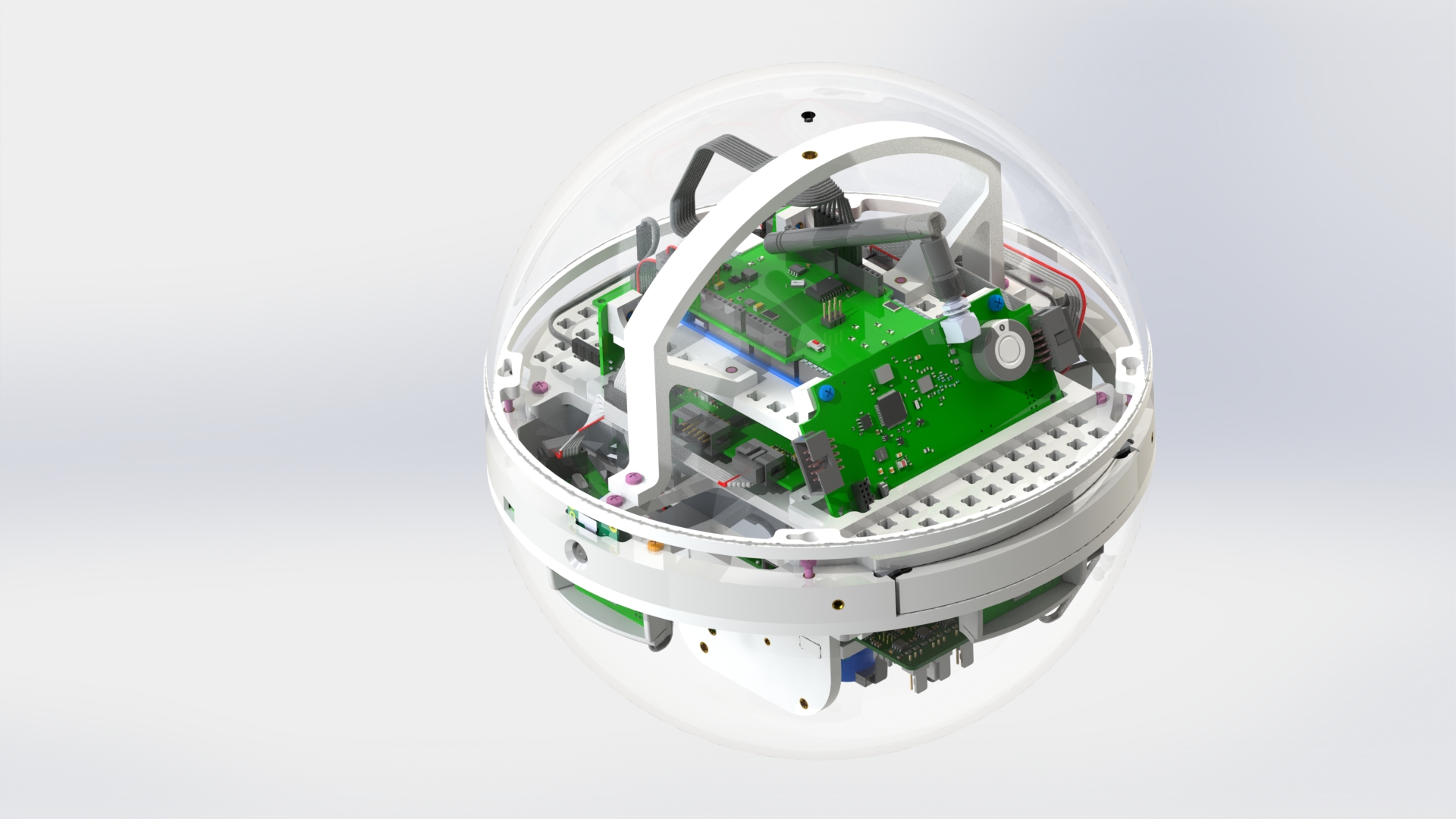

  1. Secure the upper hemisphere by placing it on the protruding screws and turning (picture 13).

    Крепление верхней полусферы

    Крепление верхней полусферы

    Picture 13.

  2. Screw the screw with ring into the hole on the upper hemisphere (picture 14).

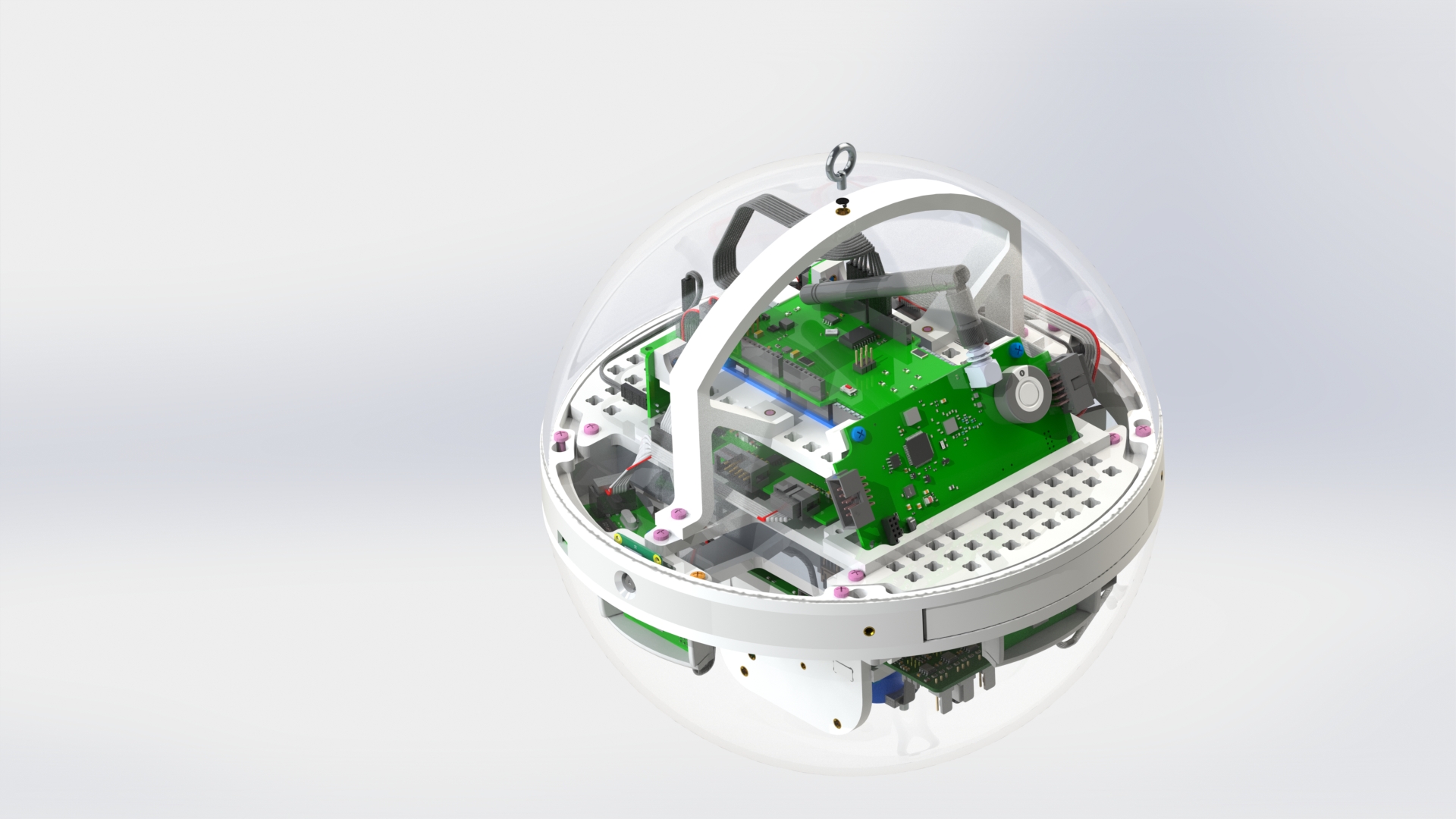

    Общая сборка одноосной конфигурации

    Общая сборка одноосной конфигурации

    Picture 14.

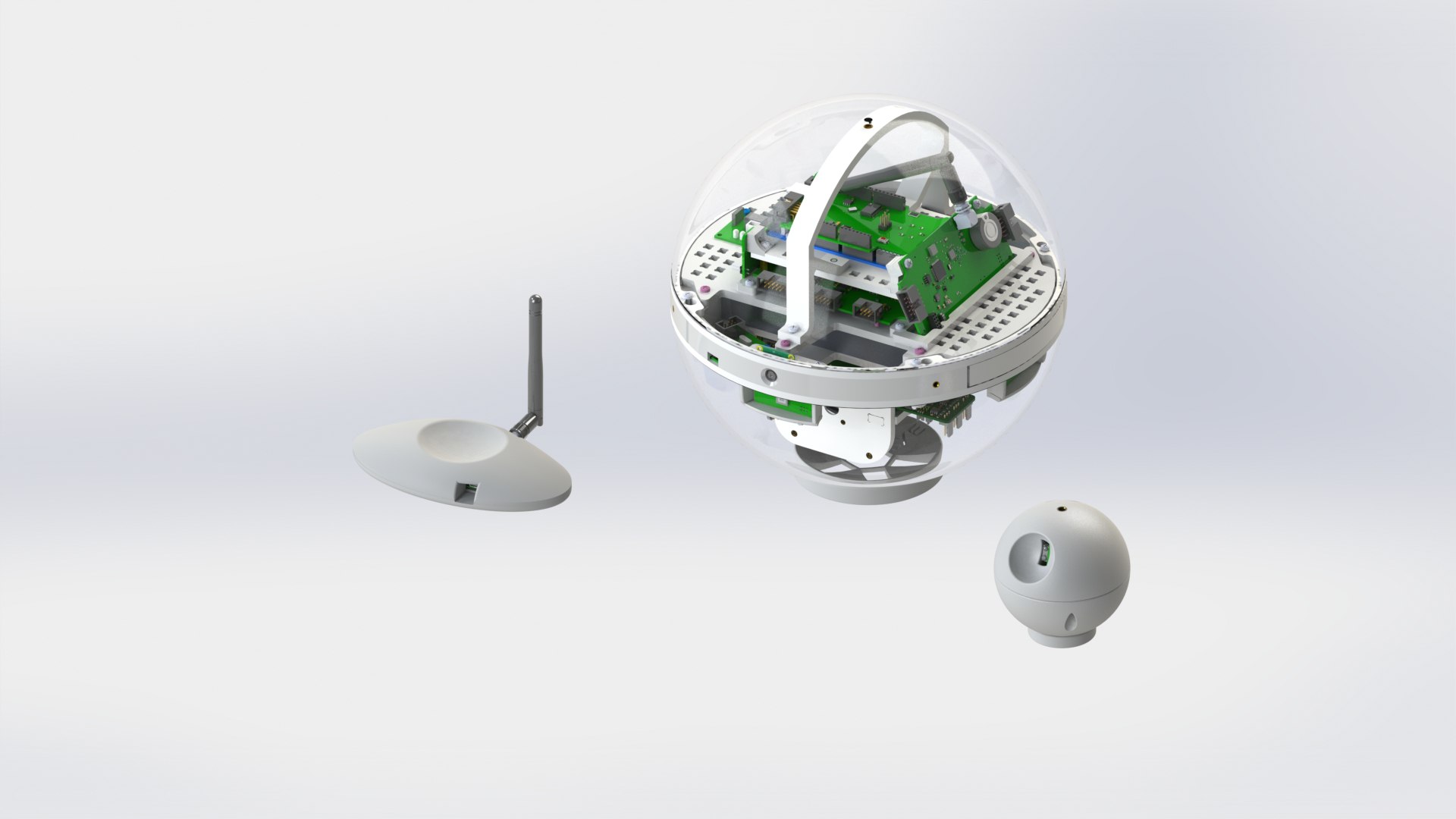

The assembled Orbix (uniaxial configuration) looks like this: (picture 15):

Собранный конструктор OrbiX (одноосная конфигурация)

Собранный конструктор OrbiX (одноосная конфигурация)

Picture 15.
