Assembly of the lower part of the uniaxial configuration

To assemble this part of the constructor, you need to use parts from the third lodgments.

Components required for assembly:

• Reaction wheel board - 1 pc.;
• Reaction wheel - 1 pc.;
• Camera transition board - 1 pc.;
• Power system board - 1 pc.;
• Batteries - 4 pc.;
• Encoder - 1 pc.;
• Solar sensor board - 1 pc.;
• Screws M2x4 - 2 pc.;
• Screws M3x6 - 22 pc.;
• Screws M3x10 - 4 pc.;
• Brass stand PCHSN-5 - 8 pc.;
• Brass stand PCHSS-30 - 1 pc.

Assembly order

Assembly of the side walls of the reaction wheel

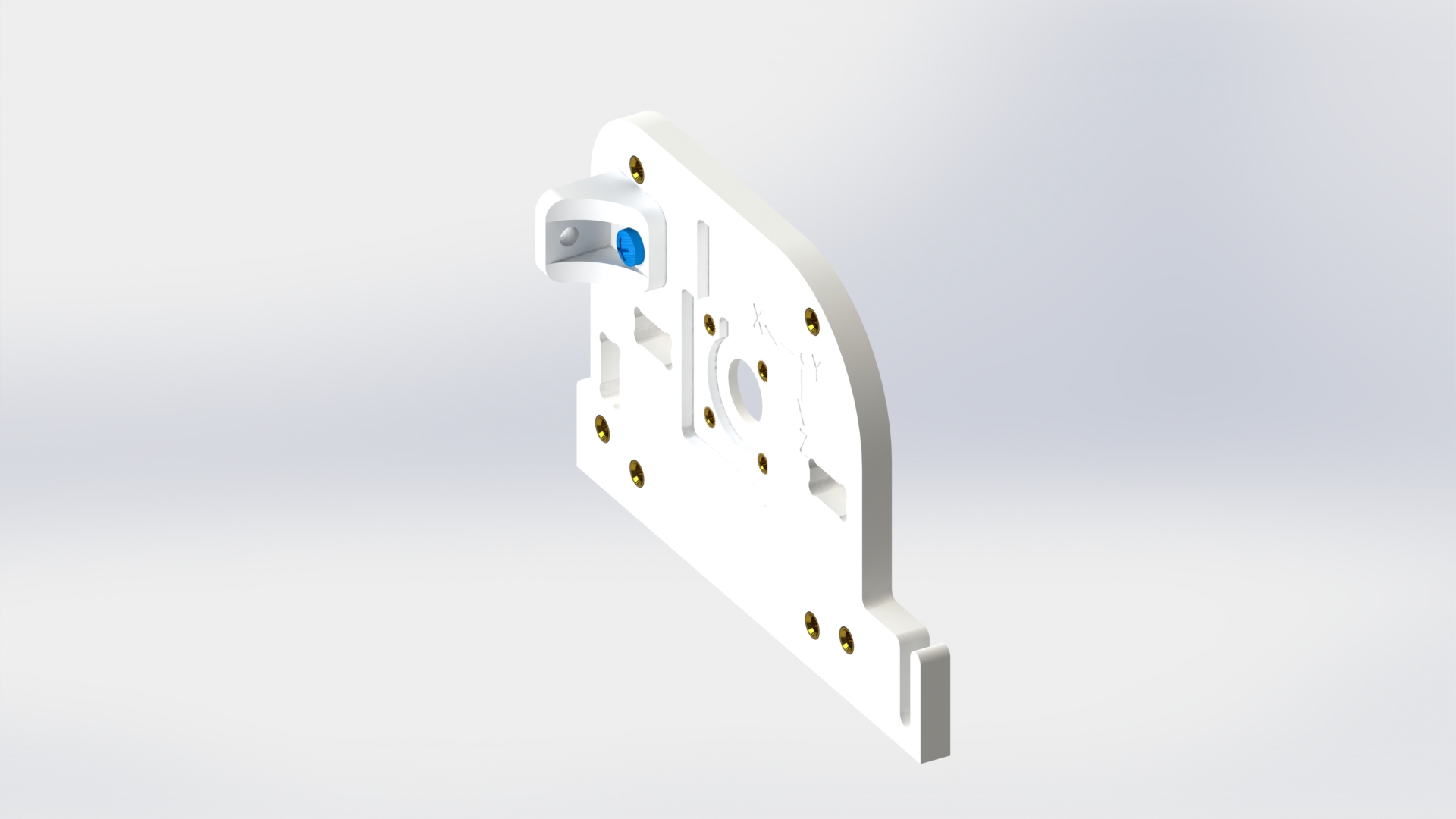

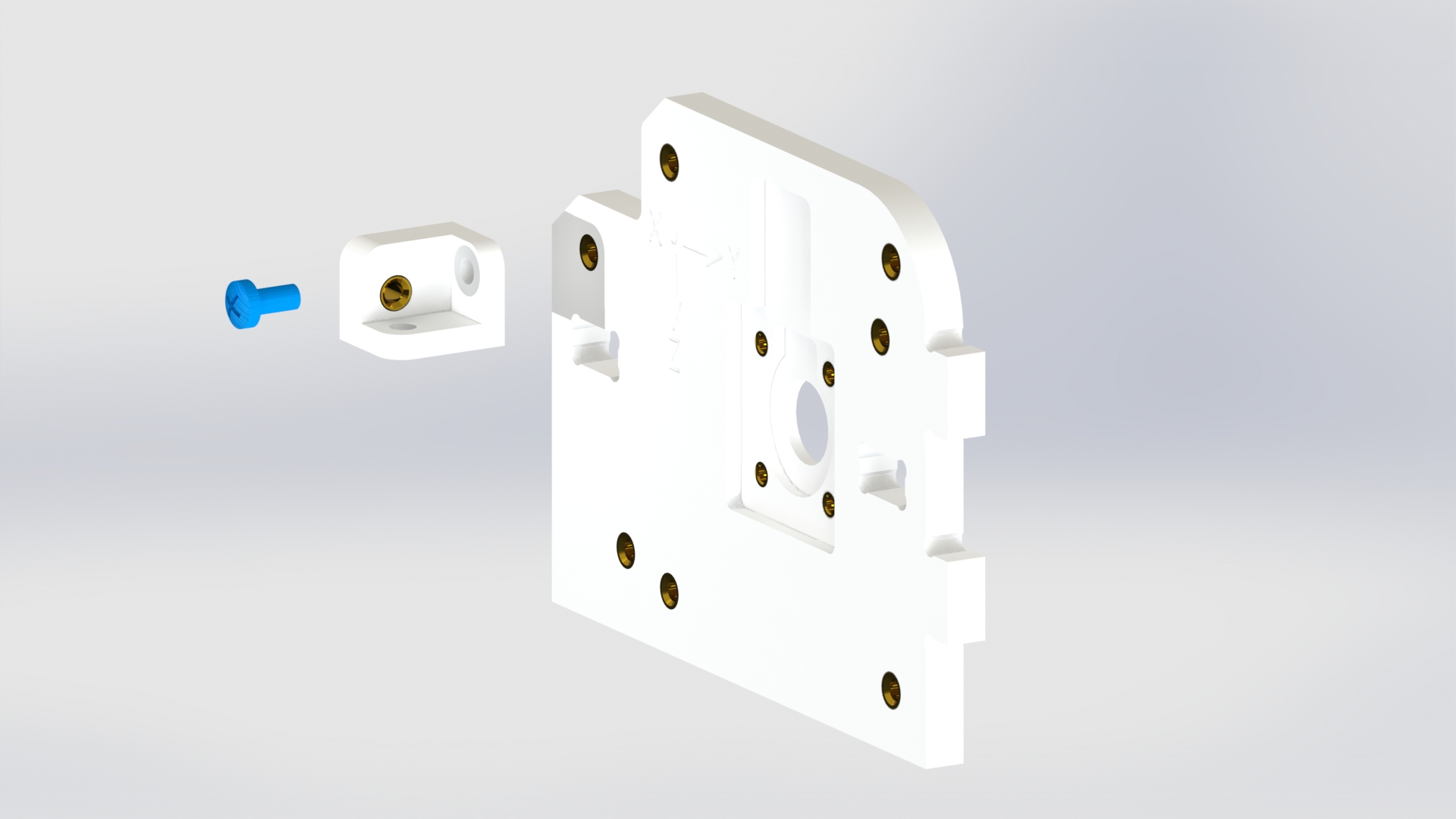

1. To the wall on the side where the «X» axis is engraved, screw the triple corner with a single M3x6 screw (picture 1).





   Picture 1.

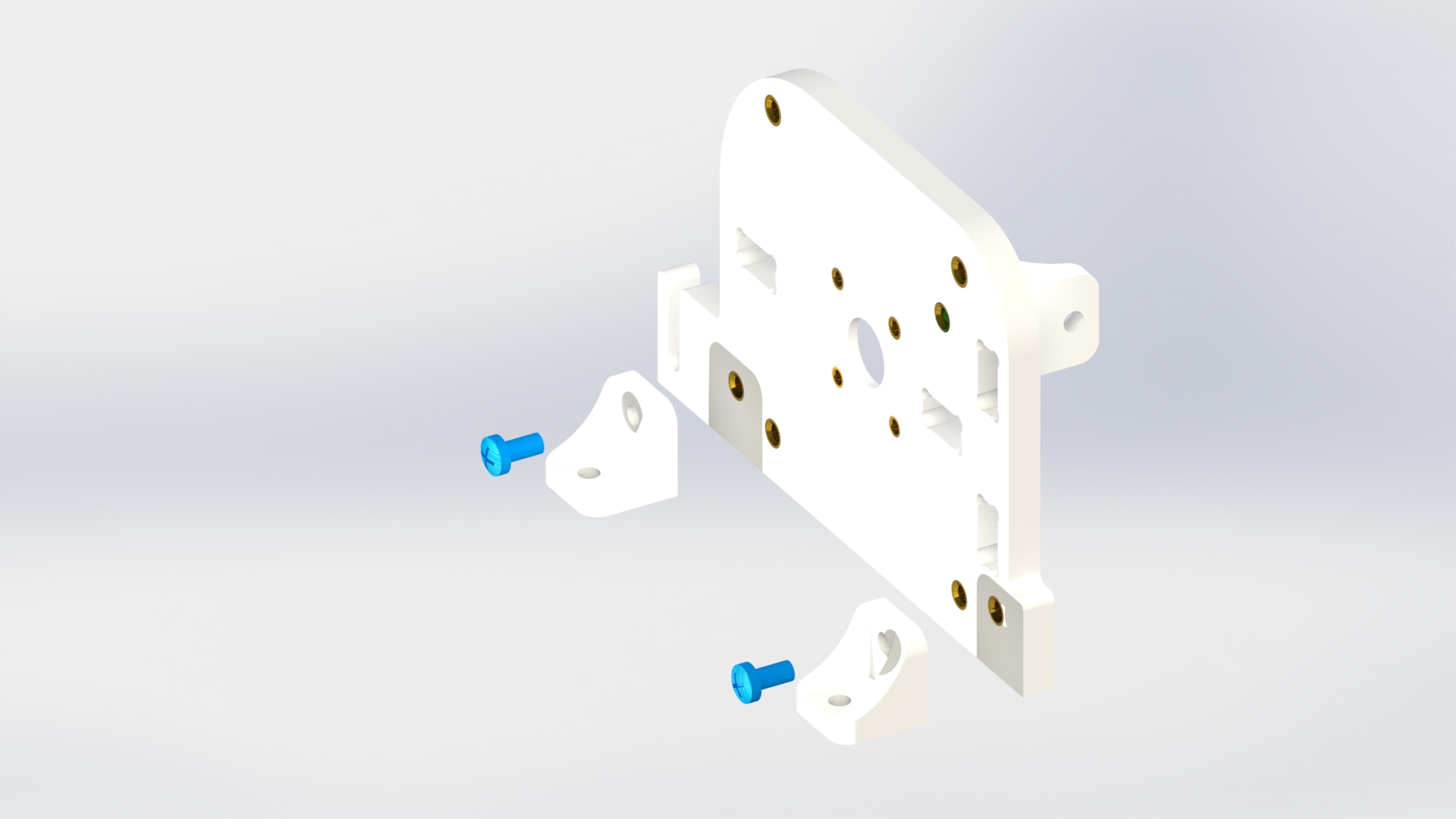

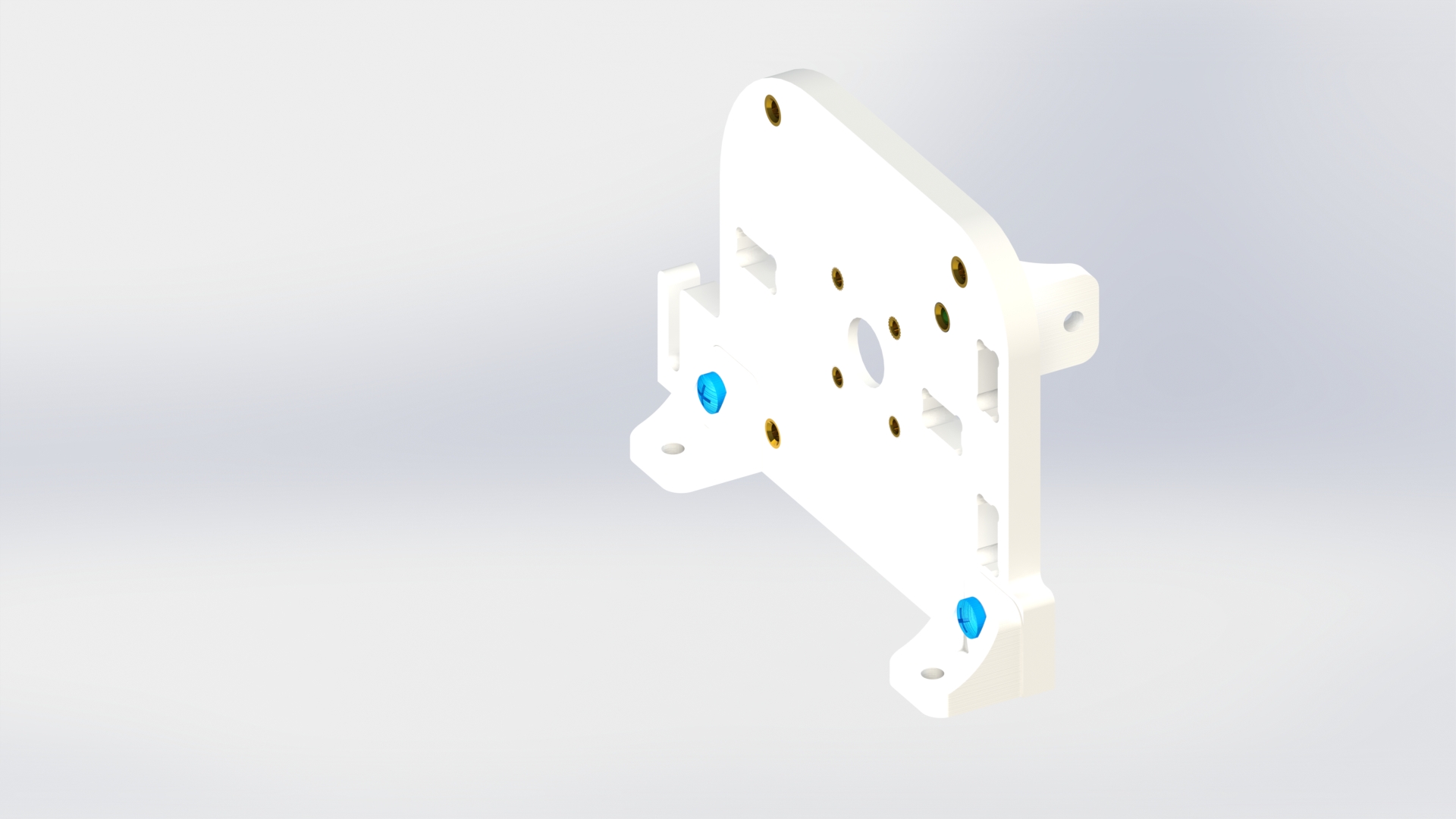

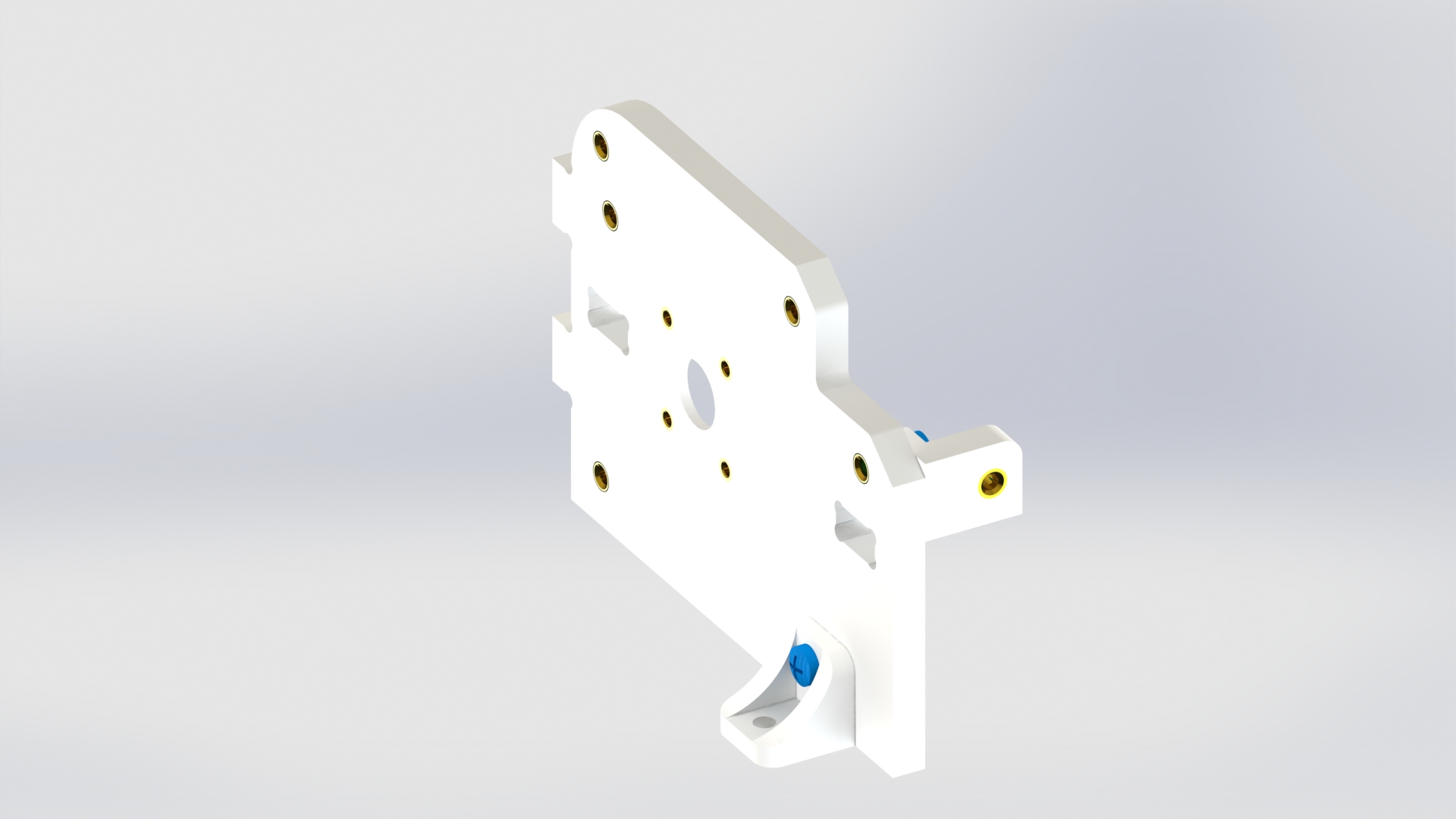

2. On the back side of the wall, screw the corner with one M3x6 screw (picture 2).





   Picture 2.

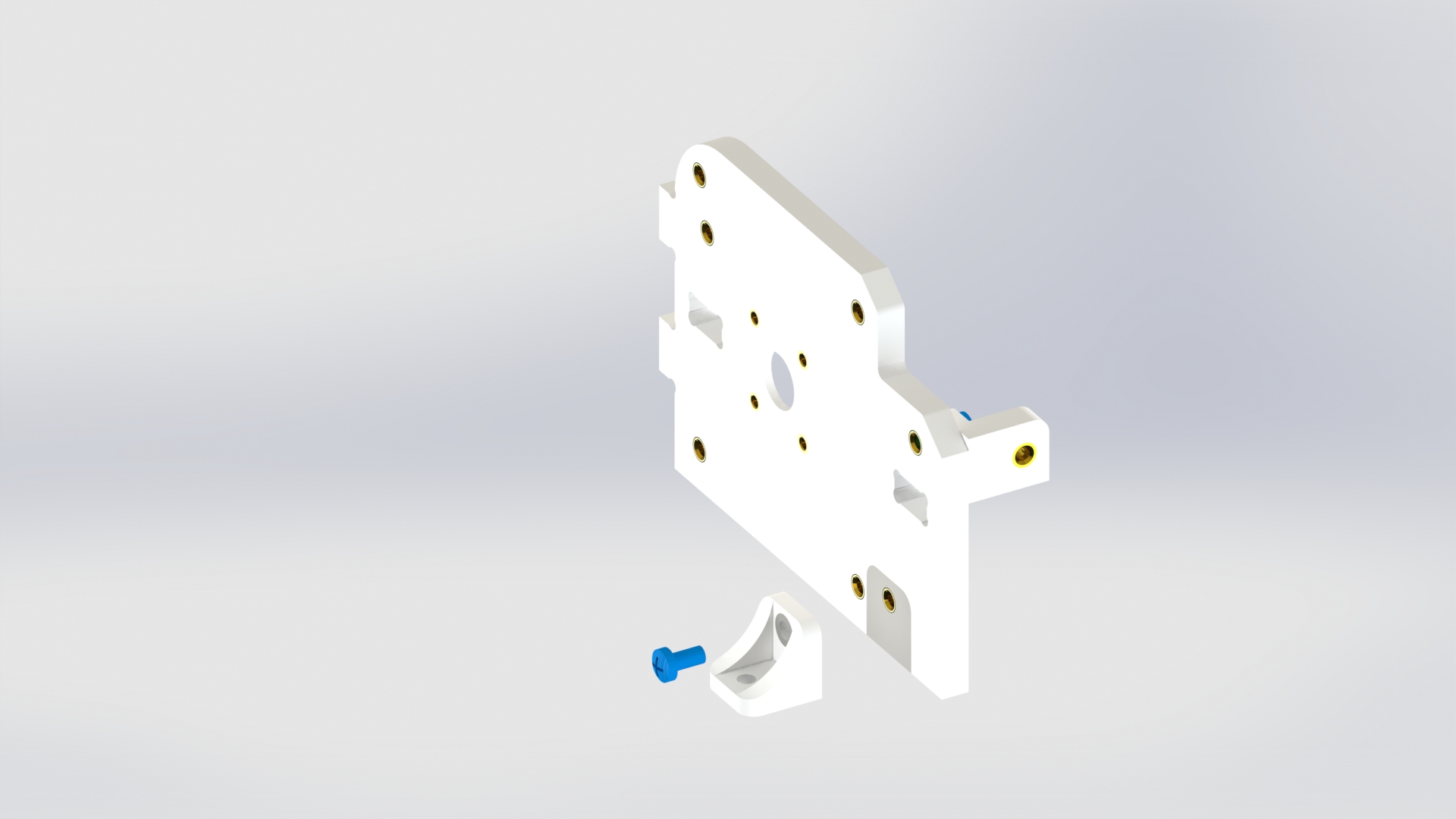

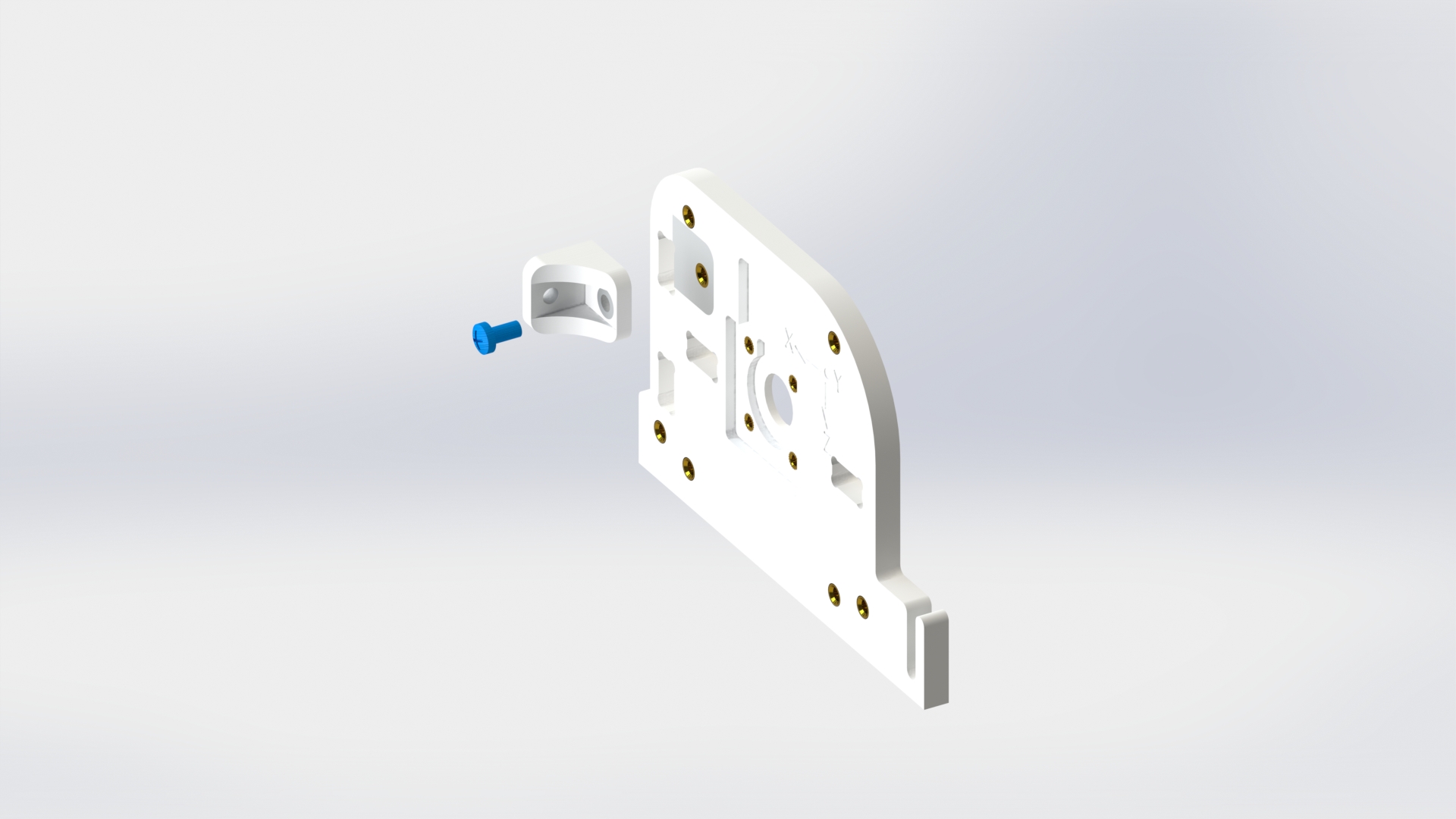

3. To the second wall from the side where the «Y» axis is engraved, screw the corner with one M3x6 screw (picture 3).





   Picture 3.

4. Attach two brackets to the back of the housing using two M3x6 screws (picture 4).





   Picture 4.

Assembly of the reaction wheel

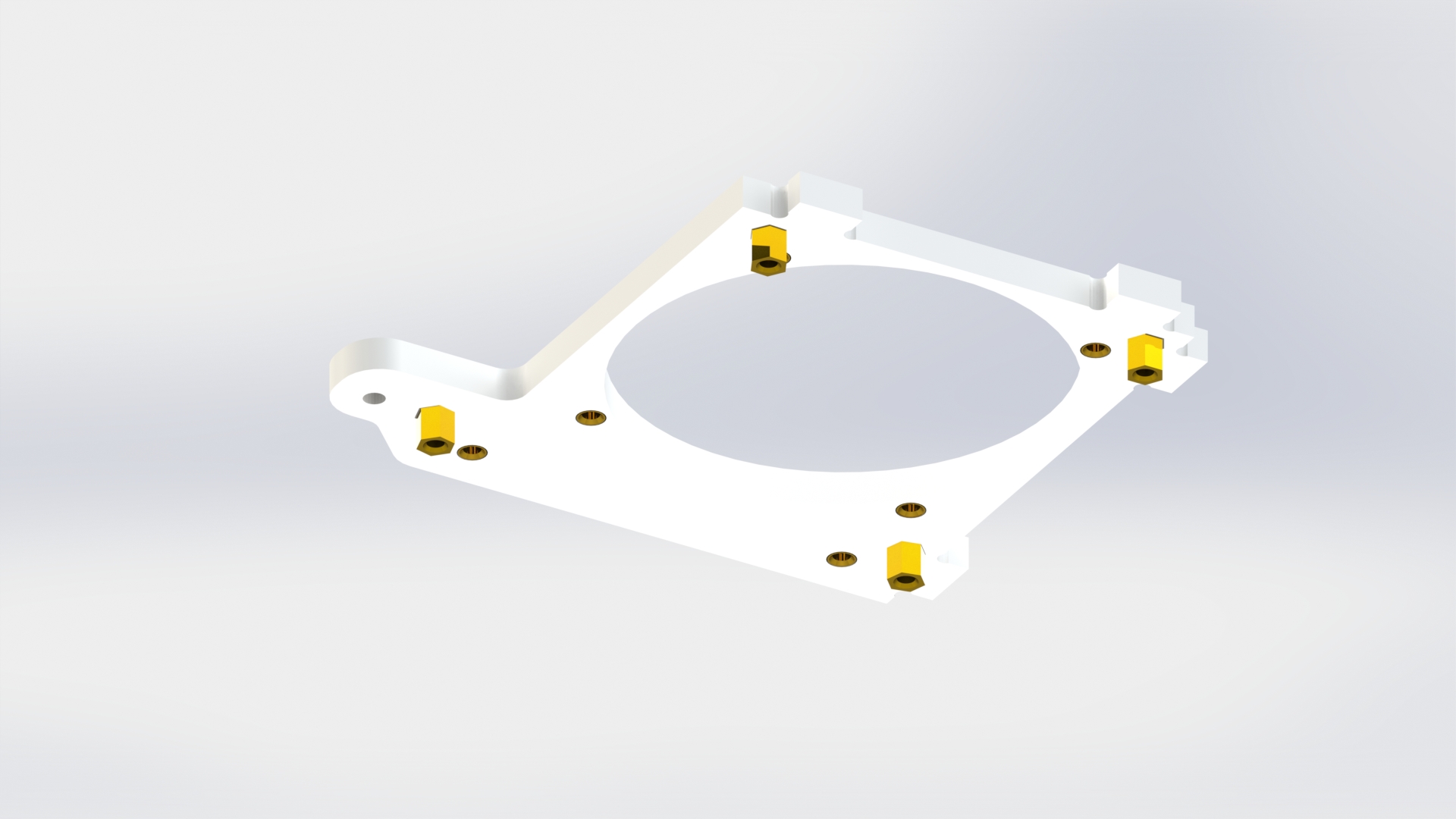

1. Attach four brass supports PCHSN-5 to the base of the housing (picture 5).





   Picture 5.

2. Use four brass supports PCHSN-5 to connect the frame of the housing to the control reaction wheel board (picture 6).





   Picture 6.

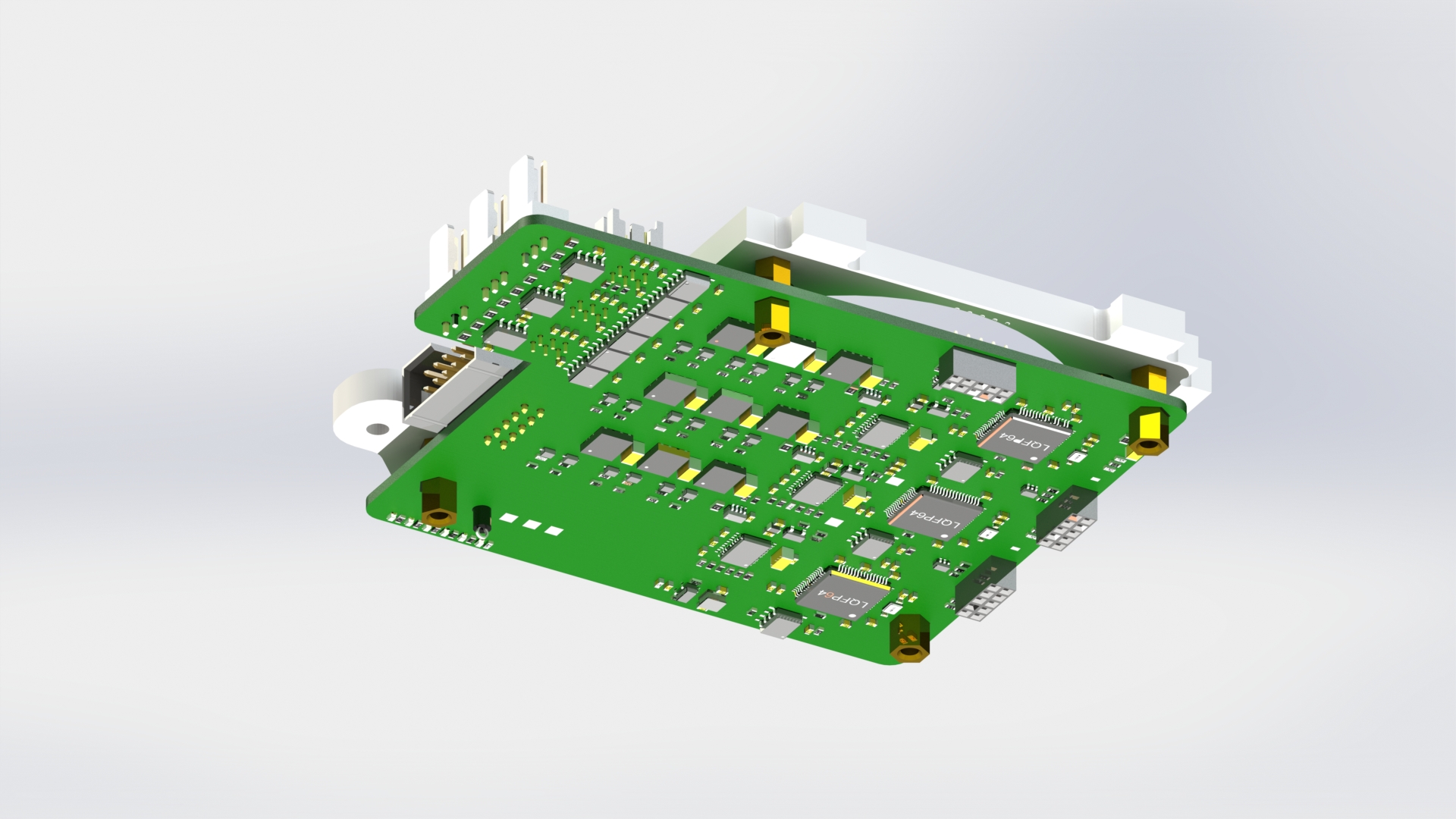

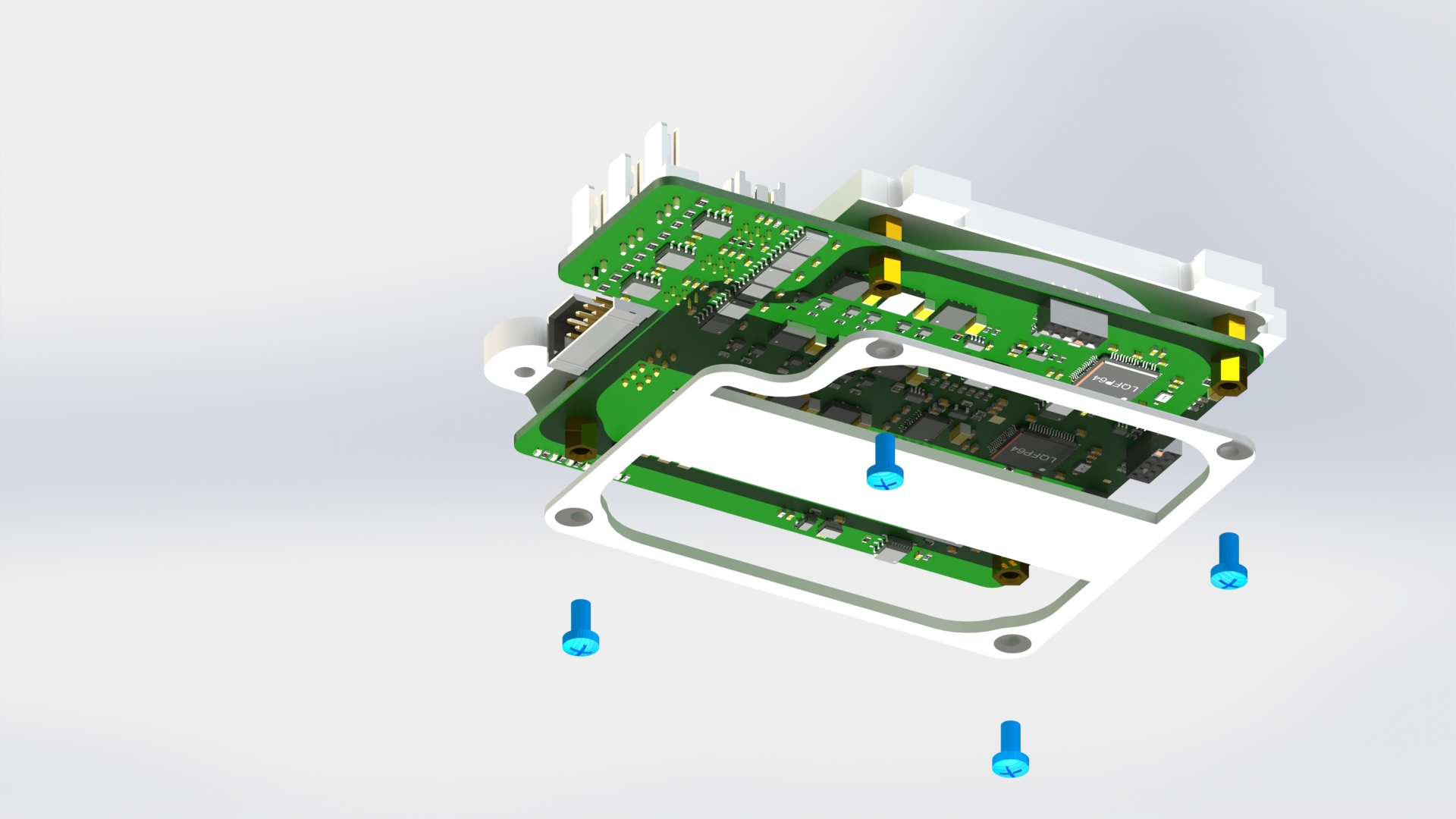

3. Secure the board with the frame of the housing using four M3x6 screws (picture 7).





   Picture 7.

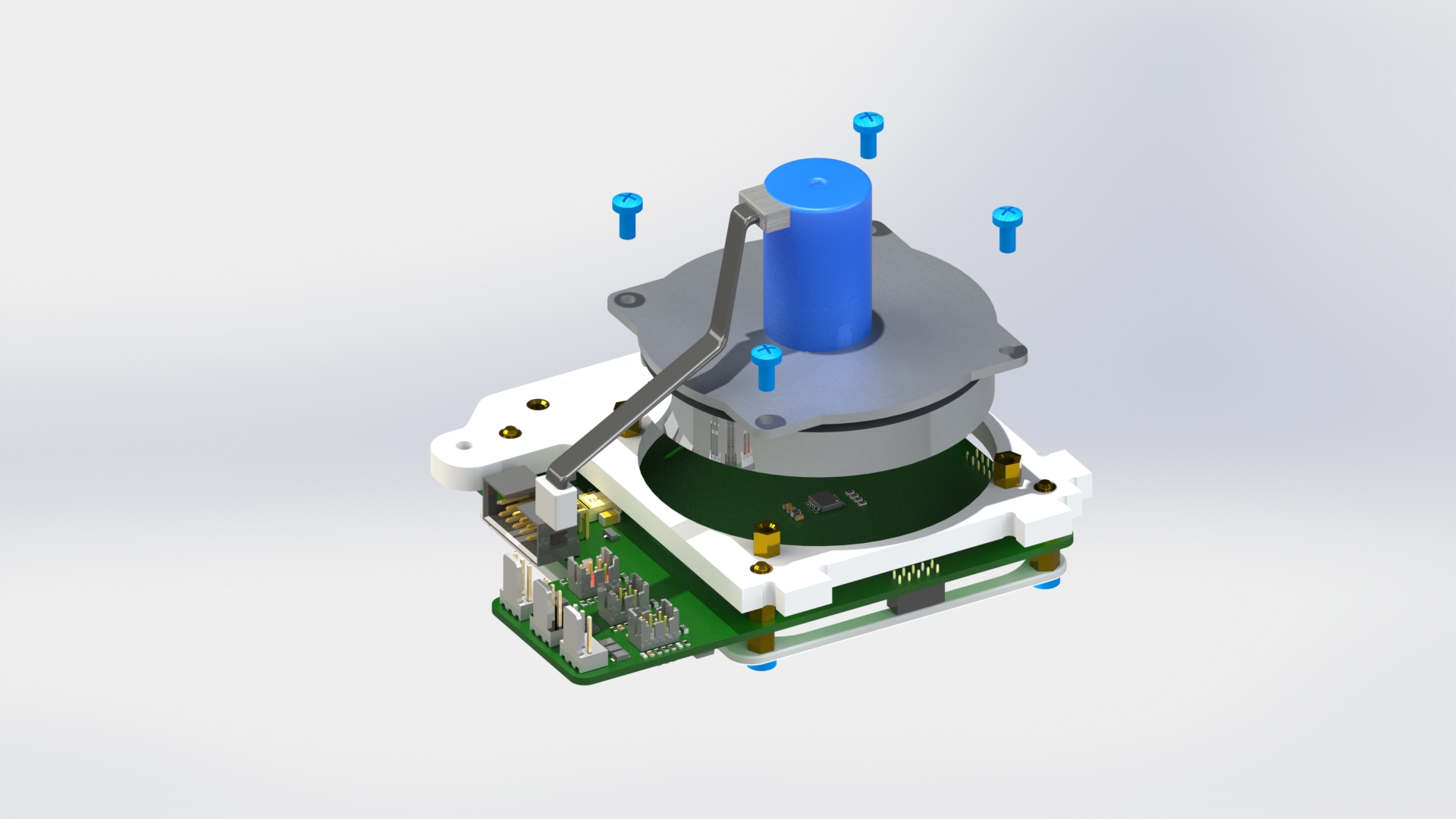

4. Use four M3x6 screws to connect the reaction wheel to the base. Connect the reaction wheel cable to the central connector on the board (picture 8).





   Picture 8.

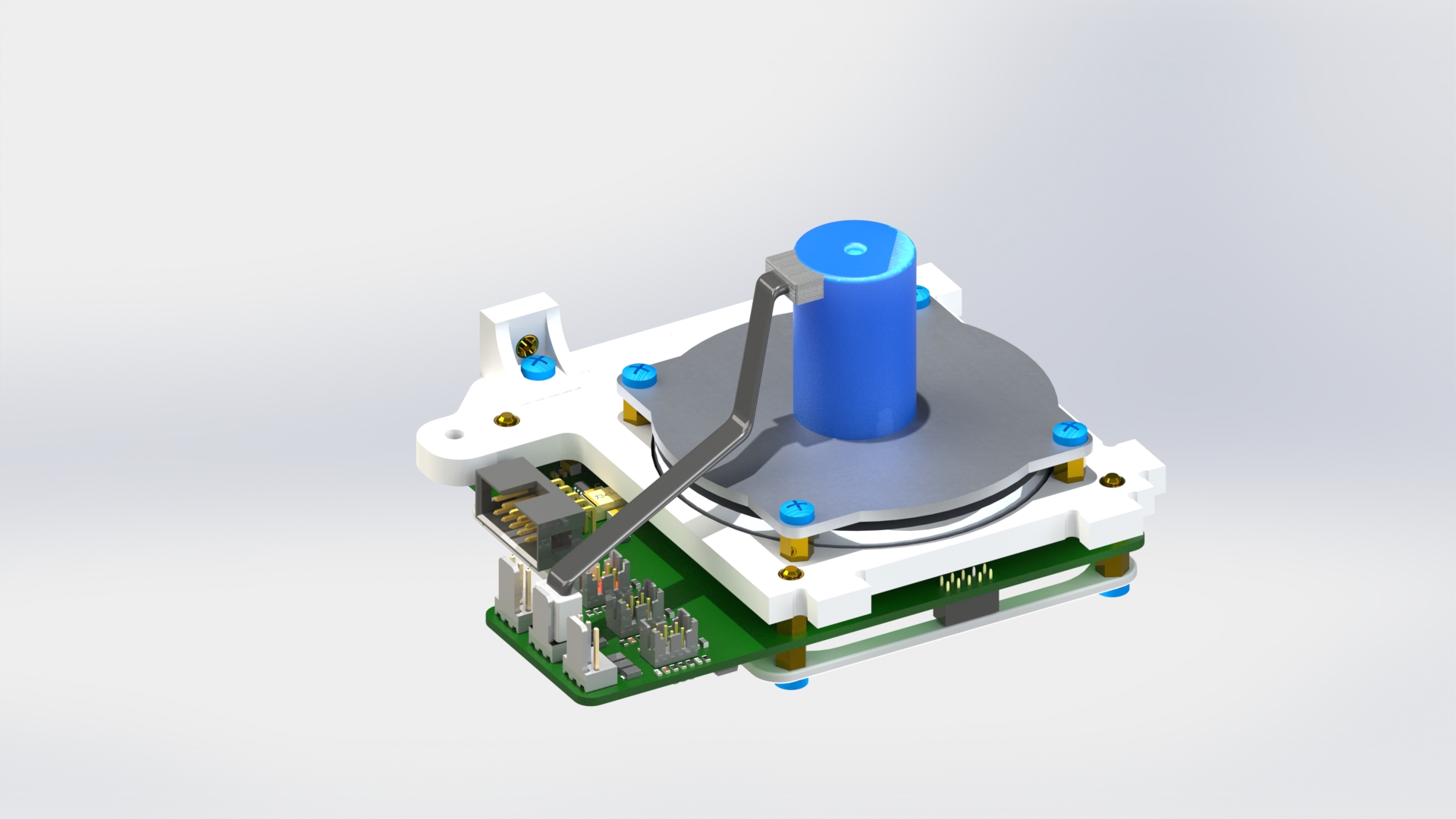

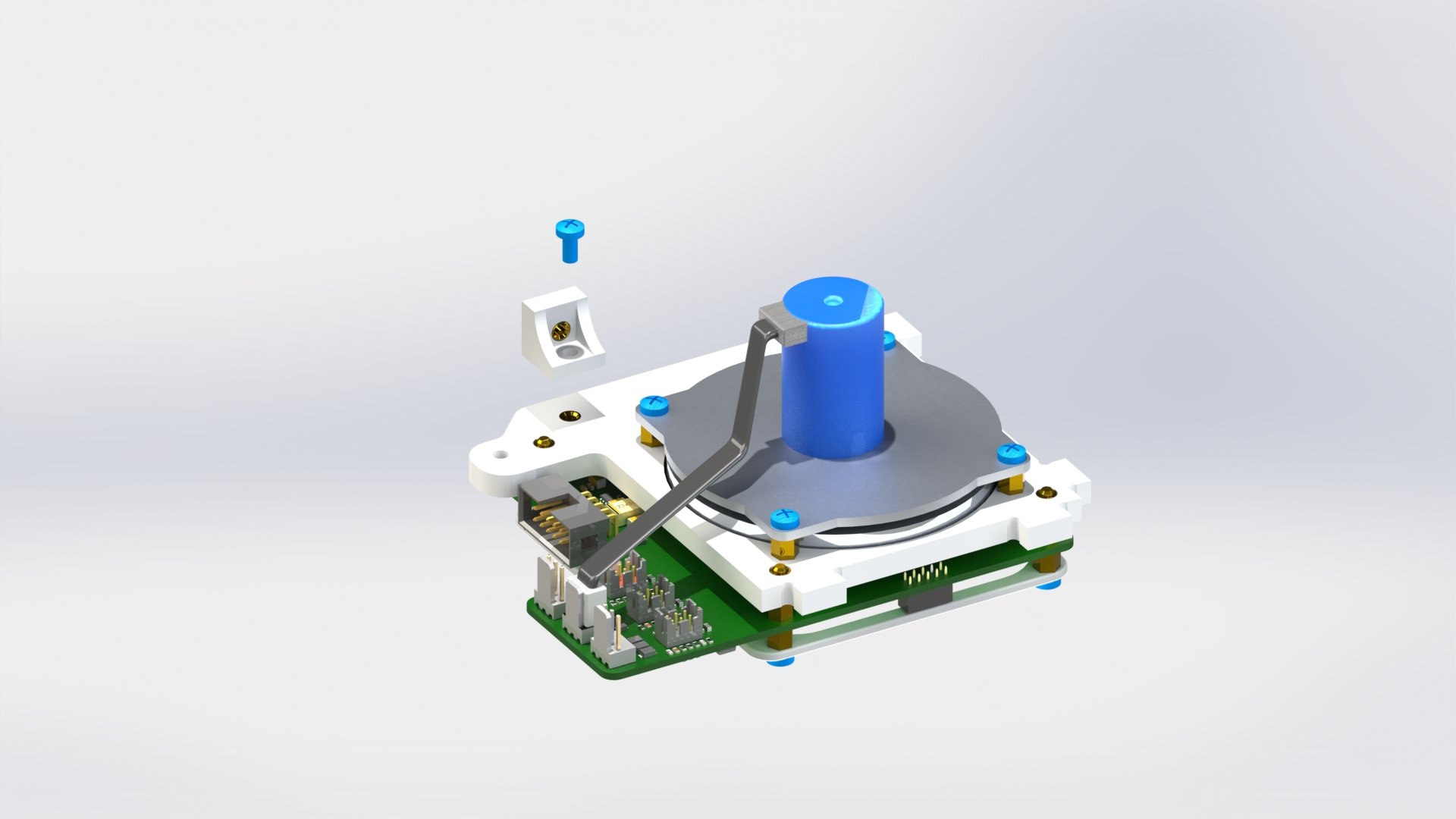

5. Use an M3x6 screw to connect the bracket to the base (picture 9).





   Picture 9.

Power System Assembly

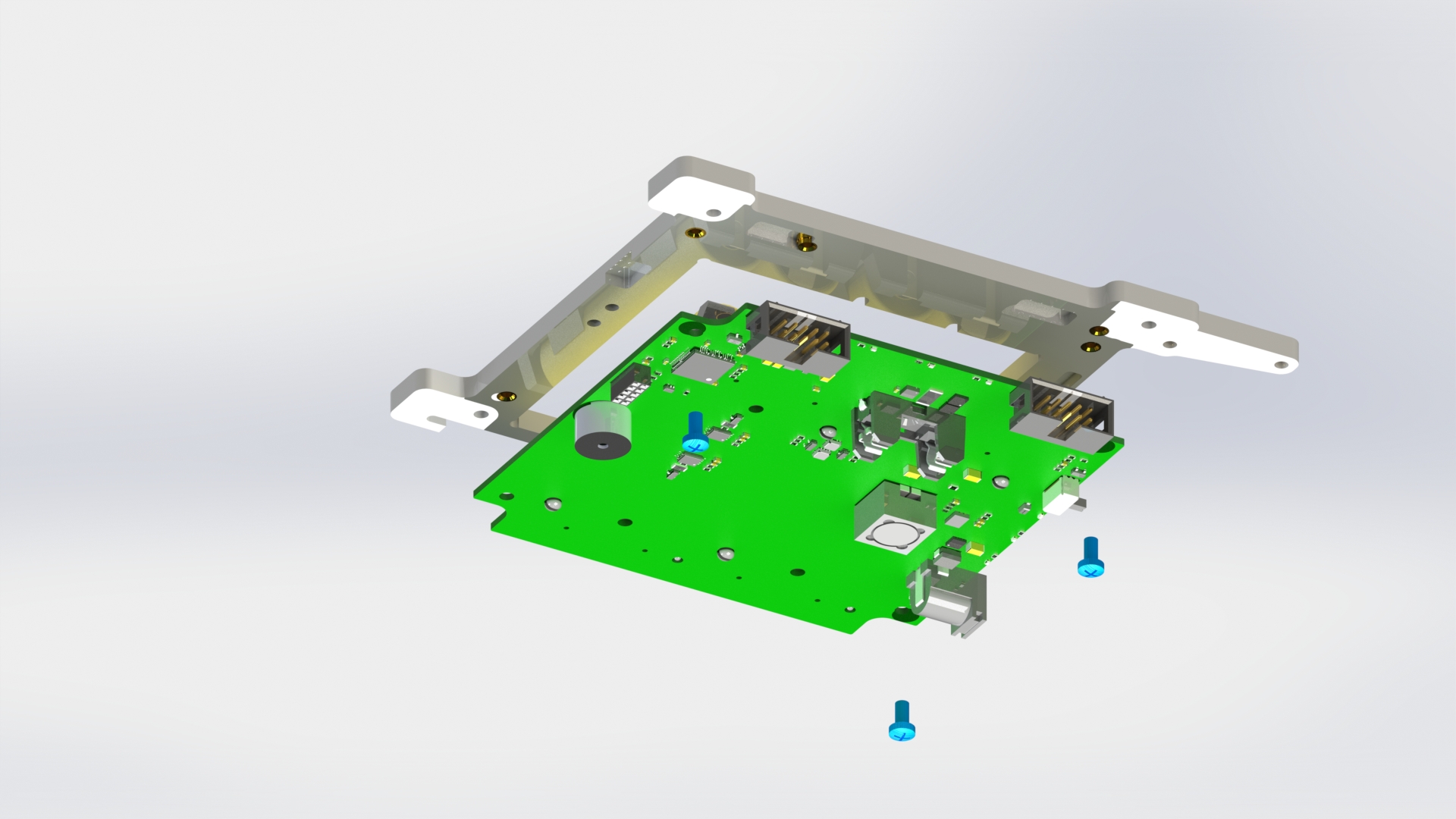

1. Attach the power system board to the housing using three M3x6 screws, ensuring the area for the battery packs is in the cutout (picture 10).





   Picture 10.

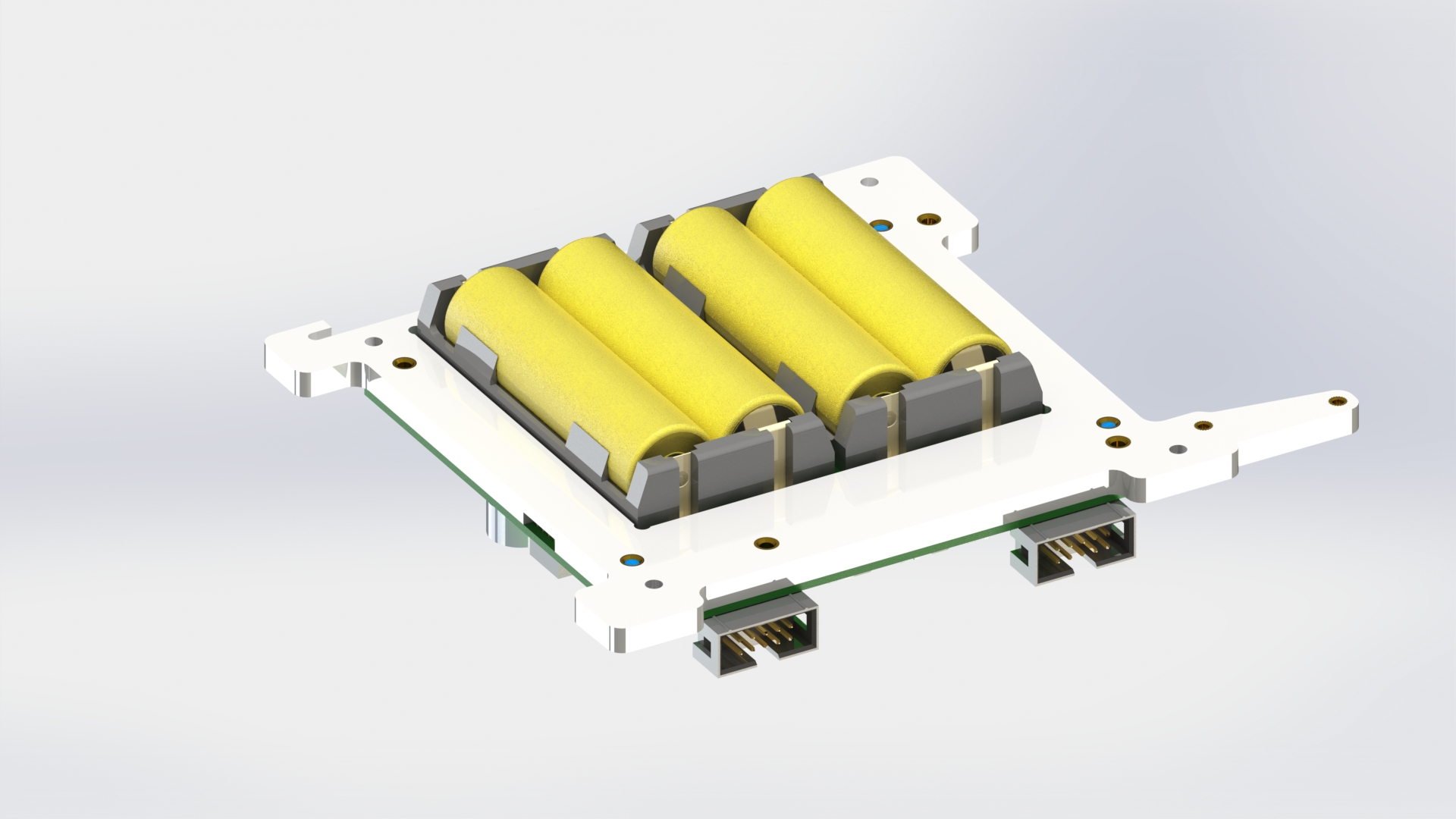

2. Insert four batteries into the connectors, observing polarity (the "+" sign on the battery corresponds to the "+" sign on the connector, likewise for the "-") (picture 11).





   Picture 11.

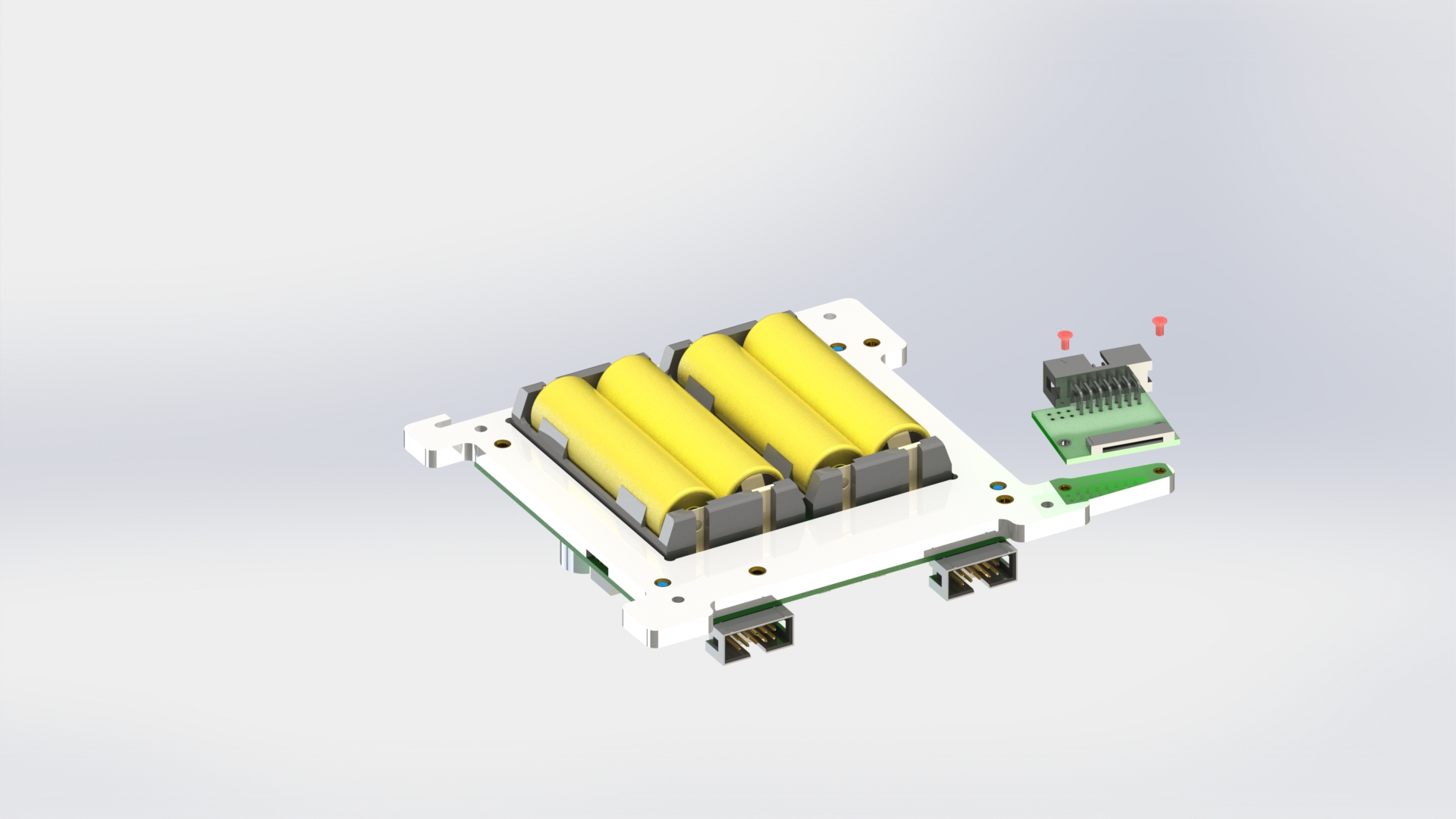

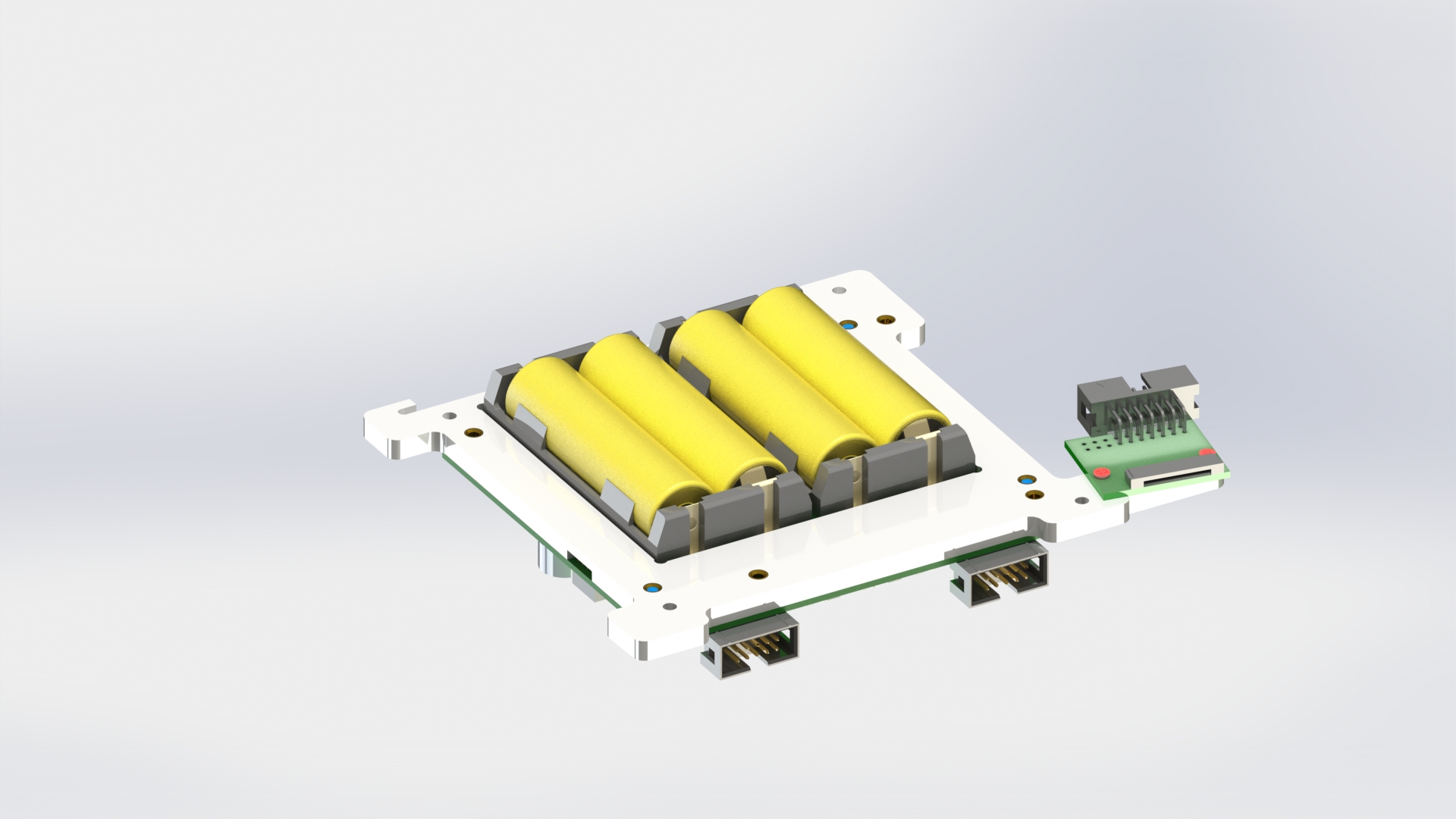

3. Use two M2x4 screws to connect the camera adapter board to the convex part of the base (picture 12).





   Picture 12.

General Assembly

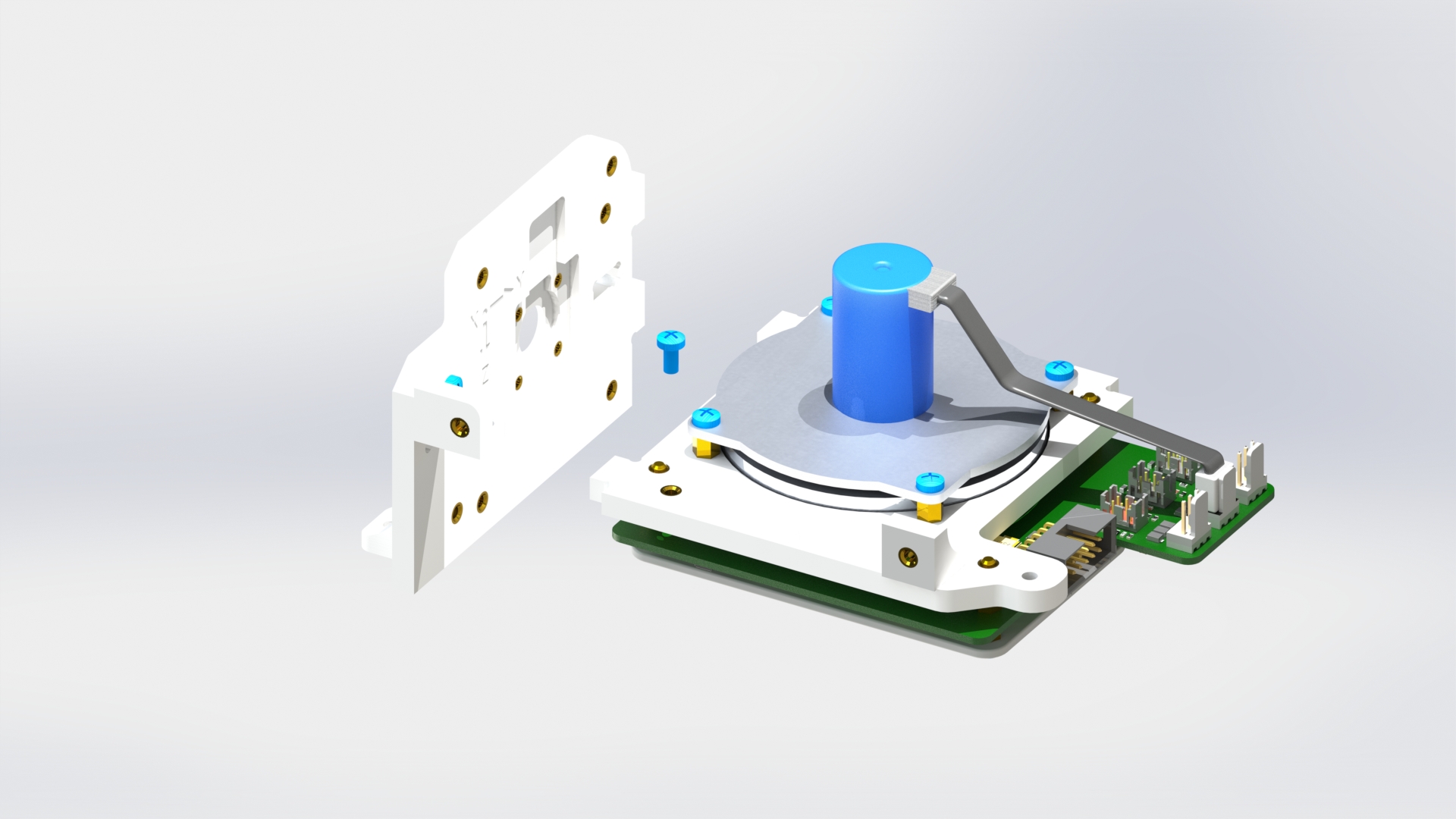

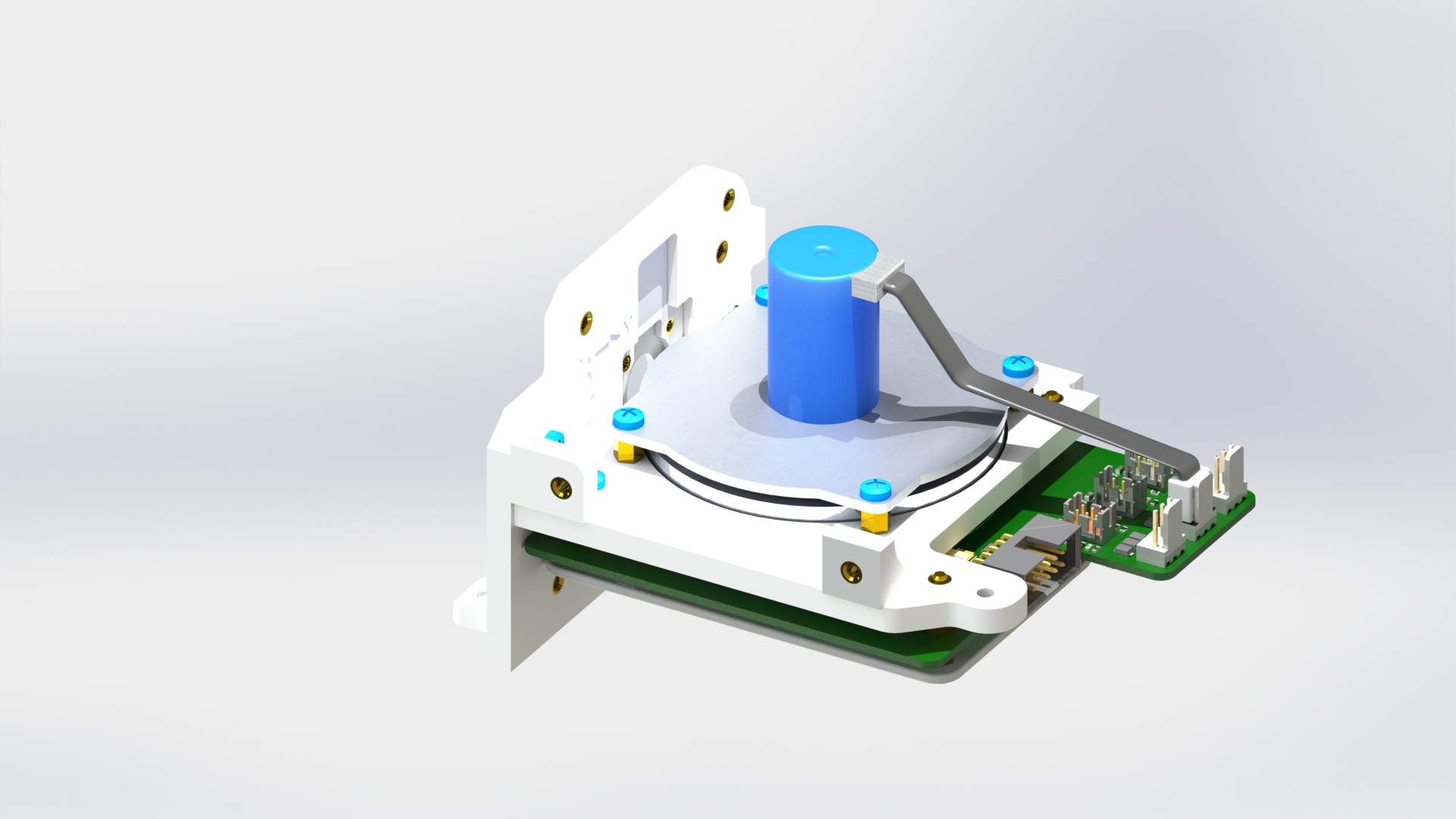

1. Connect the side panel with the "X" axis engraving to the reaction wheel using an M3x6 screw in the bracket (picture 13).





   Picture 13.

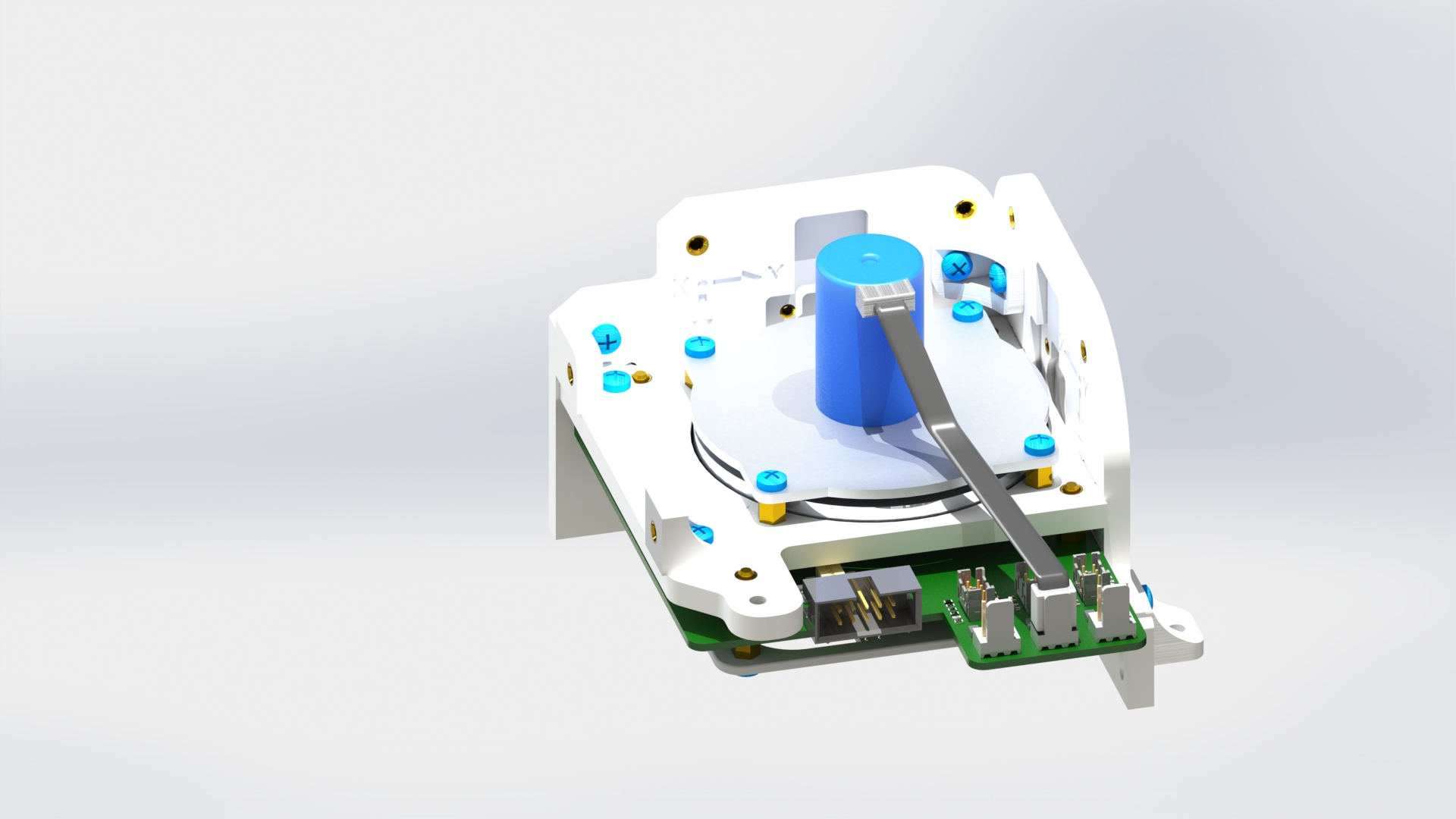

2. Connect the side panel with the "Y" axis engraving to the reaction wheel block using an M3x6 screw in the bracket (picture 14).





   Picture 14.

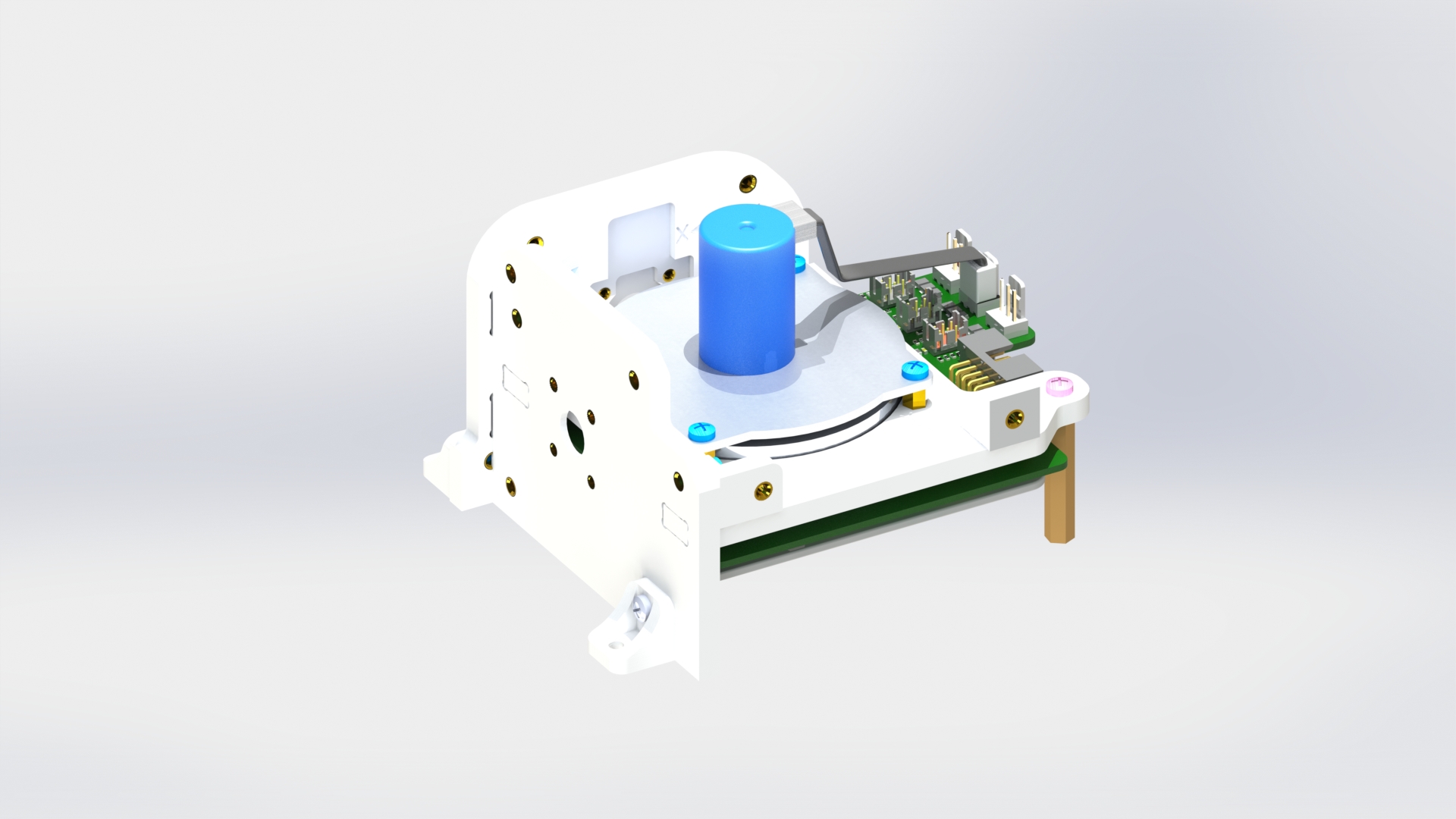

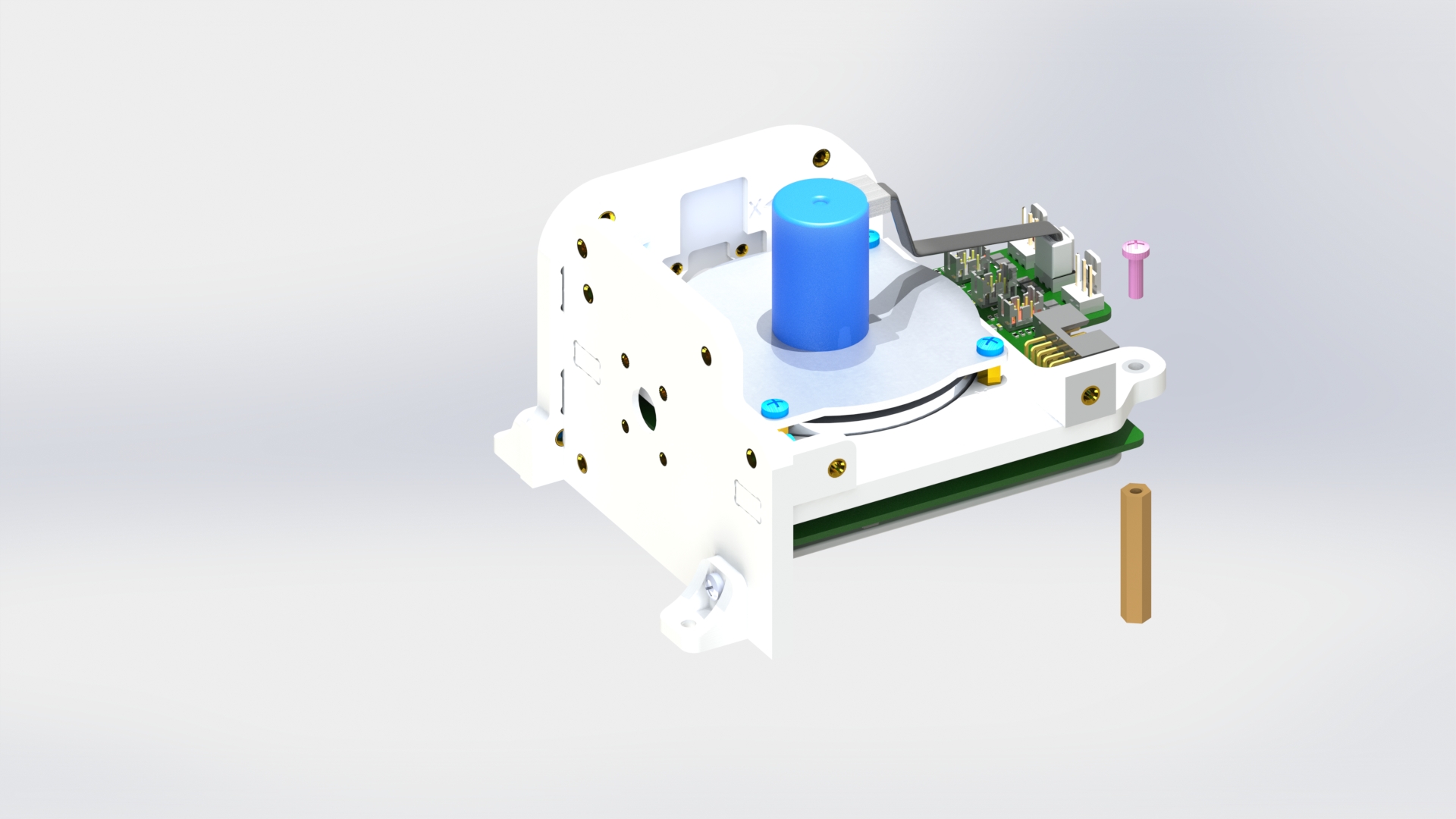

3. Screw an M3x10 screw with a brass support PCHSS-30 into the protruding corner of the reaction wheel block (picture 15).





   Picture 15.

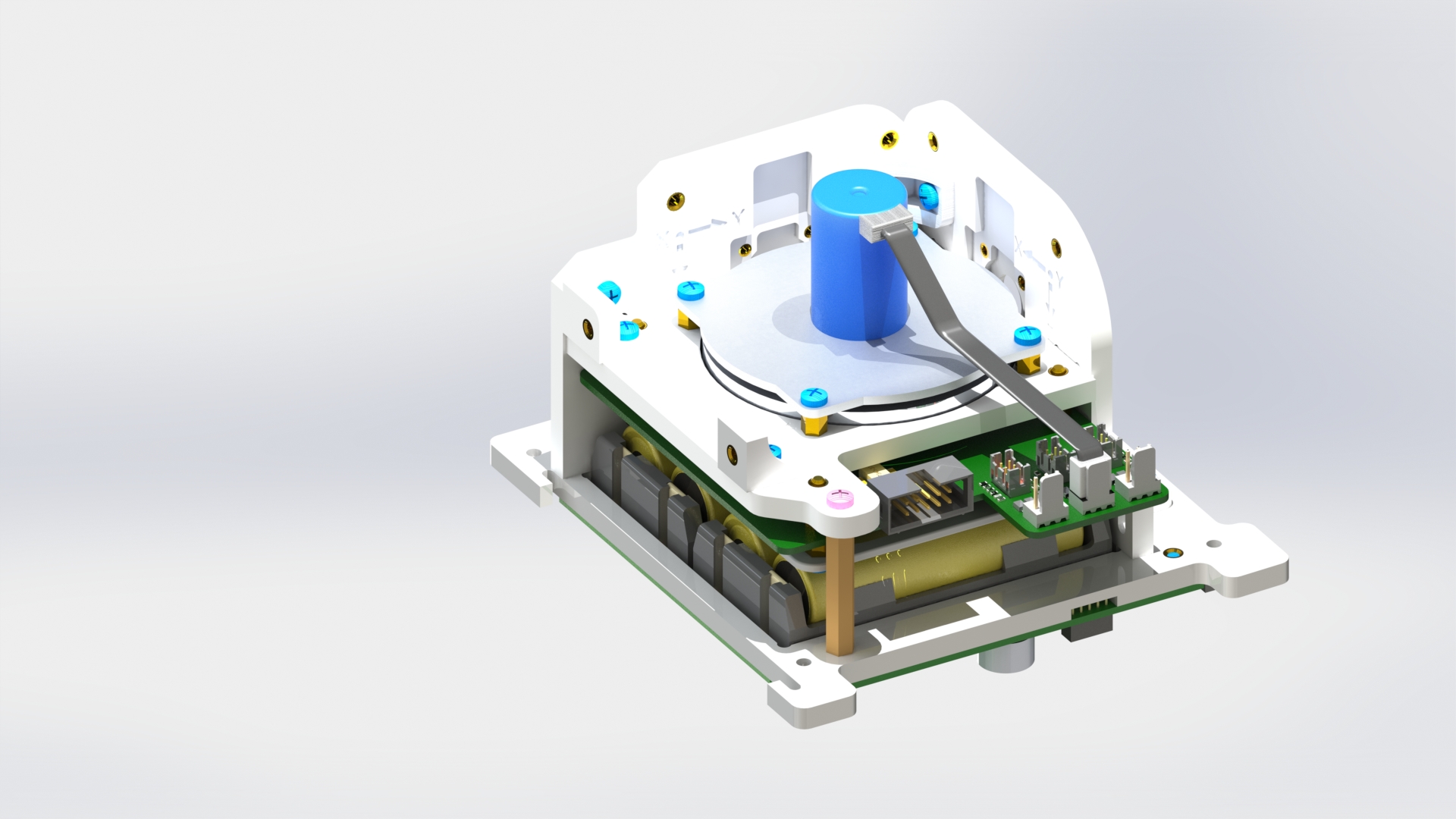

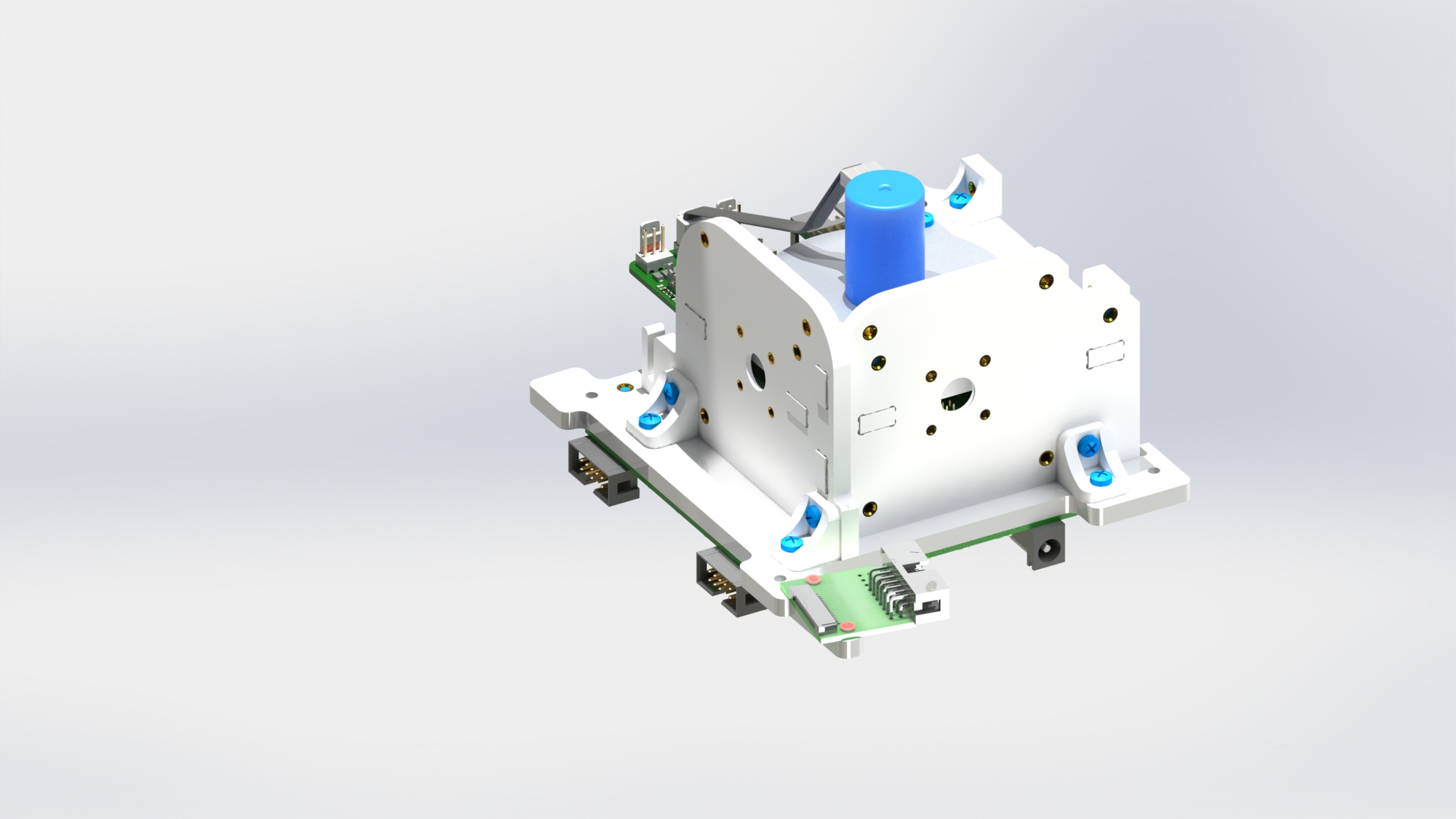

4. Connect the control reaction wheel block to the power system block using three M3x6 screws and one M3x10 screw through the brackets (picture 16).









   Picture 16.

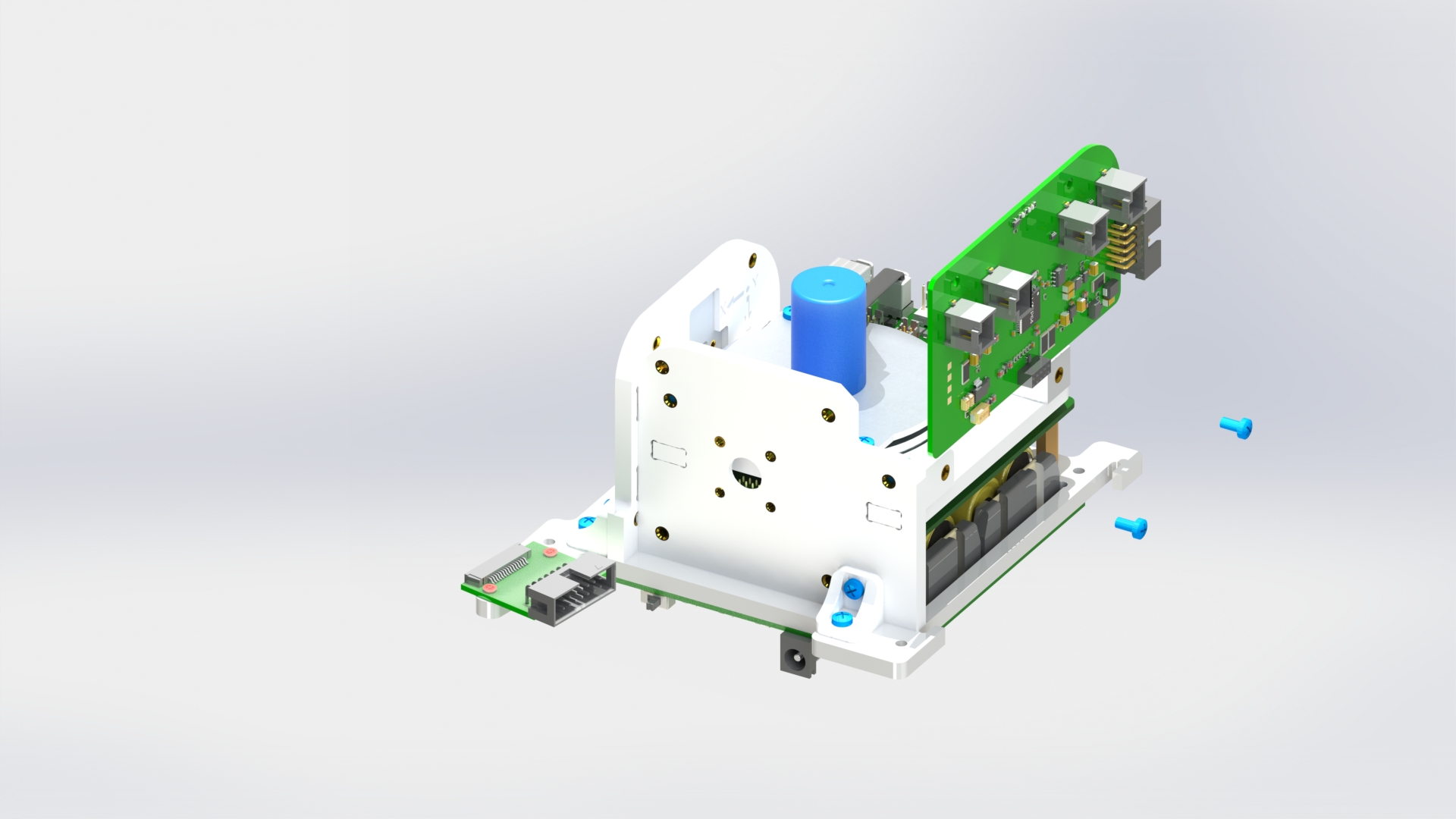

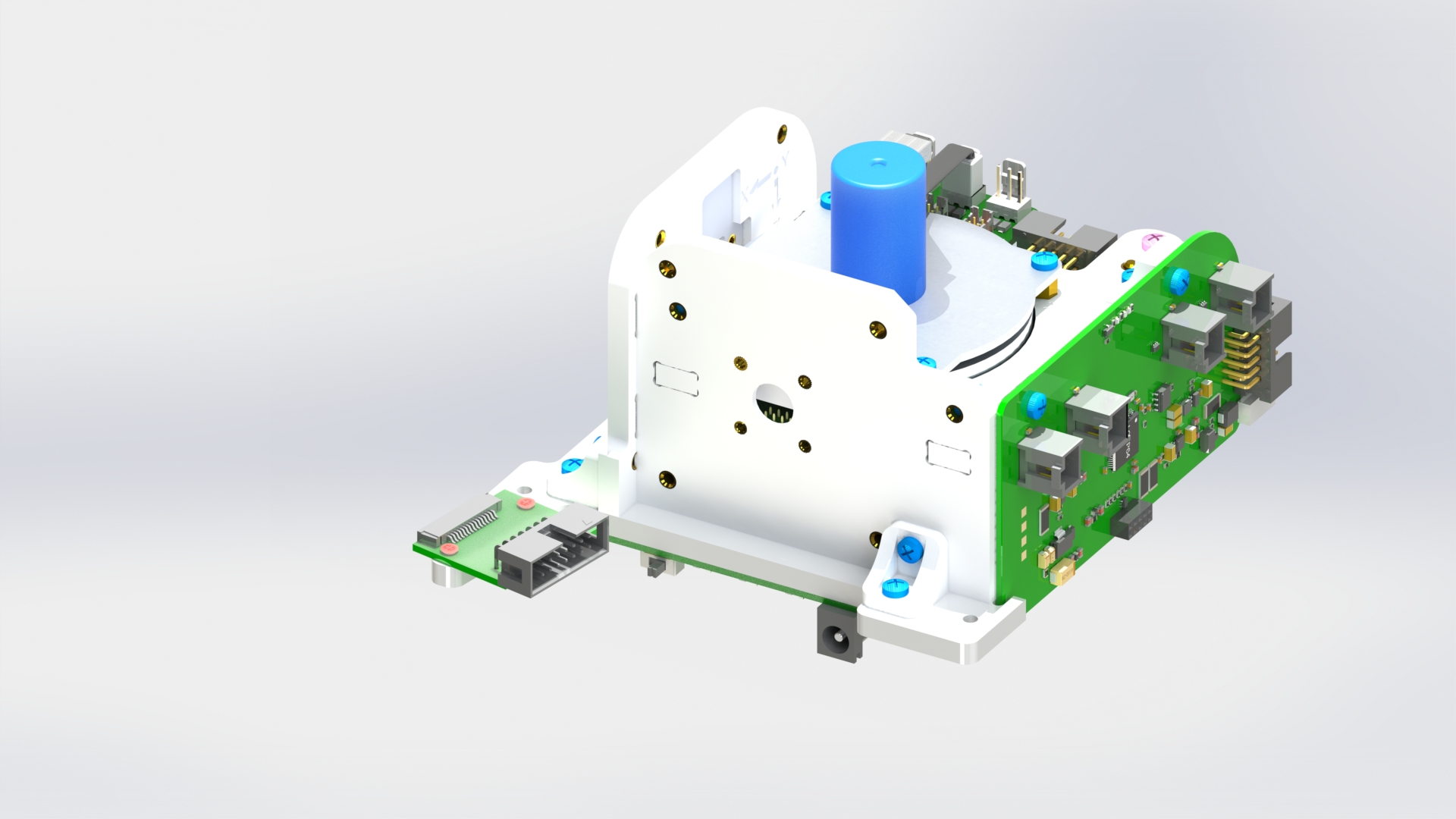

5. Use two M3x6 screws to connect the solar sensor board to the module (picture 17).





   Picture 17.
