Assembly of the upper part

To assemble this part of the constructor, you need to use parts from the second lodgments.

Components required for assembly:

• On-board computer board – 1 pc.;
• Iskra Mega board – 1 pc.;
• Shield board – 1 pc.;
• Solar panel board – 1 pc.;
• UHF board – 1 pc.;
• Antenna – 1 pc.;
• Screw М3х6 – 8 pc.;
• Screw М3х10 – 6 pc.;
• Brass stand PCHSN-12 – 4 pc.

Assembly order

1. Using four brass stands PCHSN-12, connect the on-board computer board and the lower base of the module (picture 1).





   Picture 1.

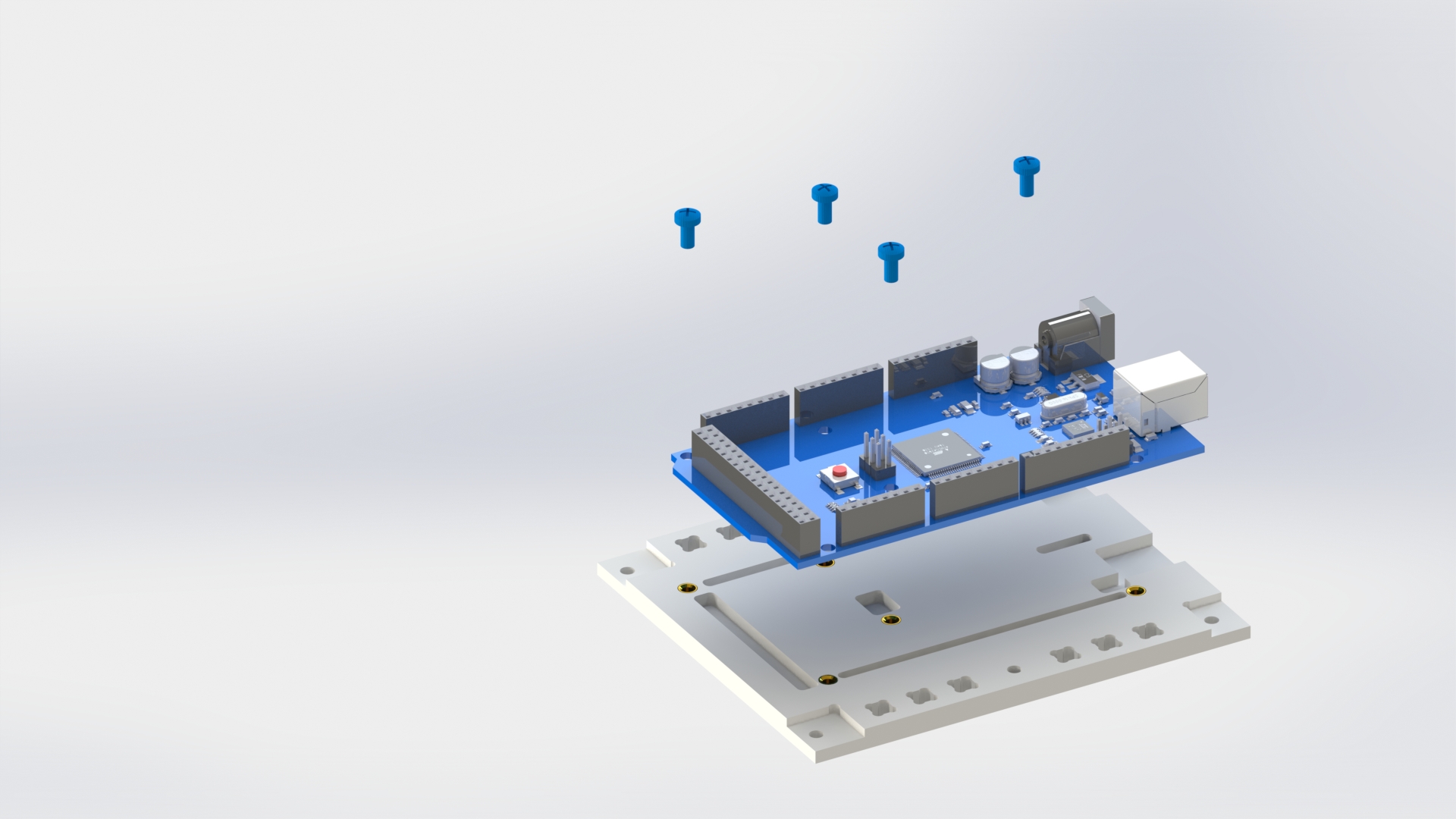

2. Fasten the Iskra Mega board with four M3x6 screws to the payload platform (picture 2).





   Picture 2.

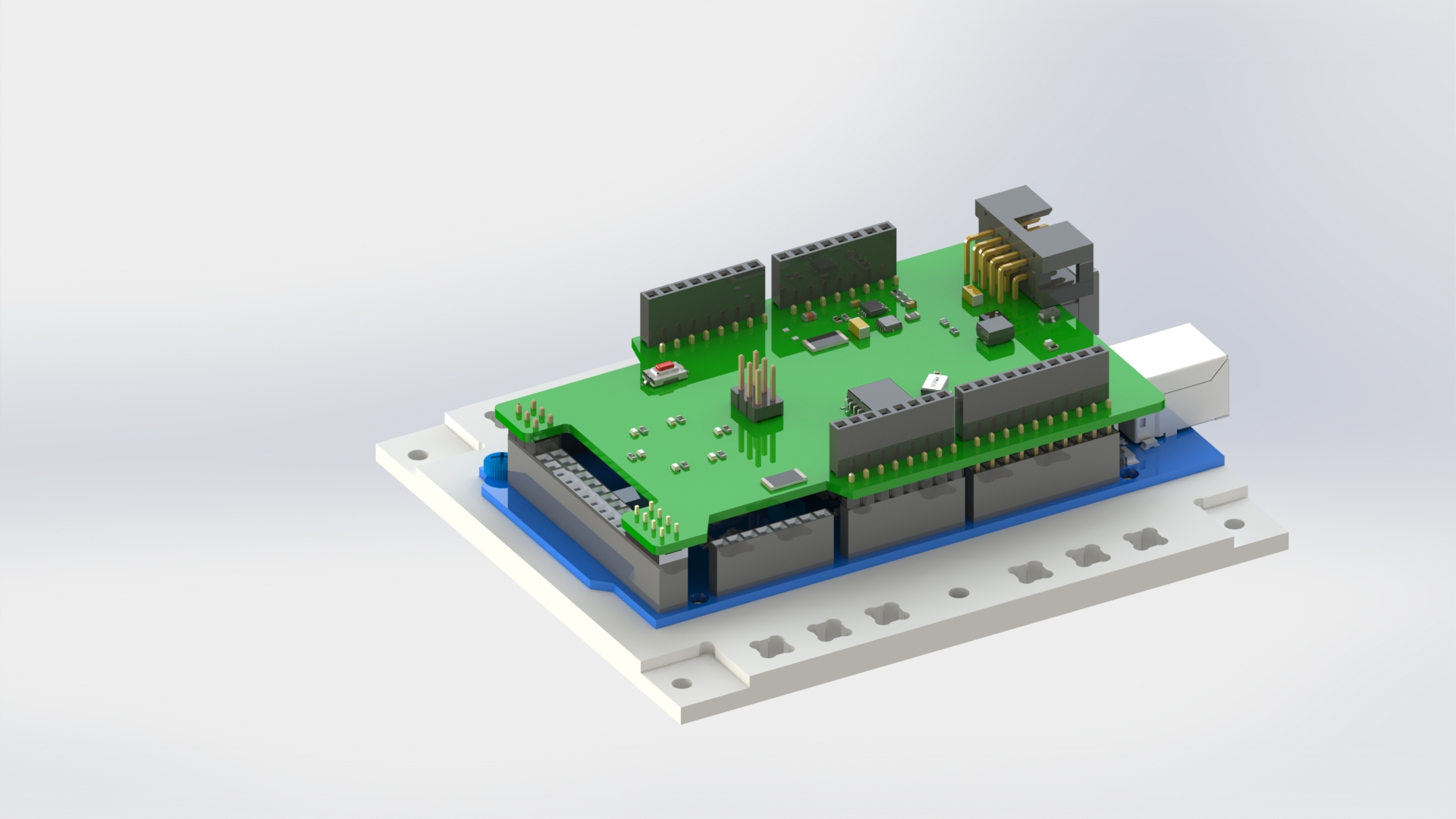

3. Install a shield board on the Iskra Mega board (рpicture 3).





   Picture 3.

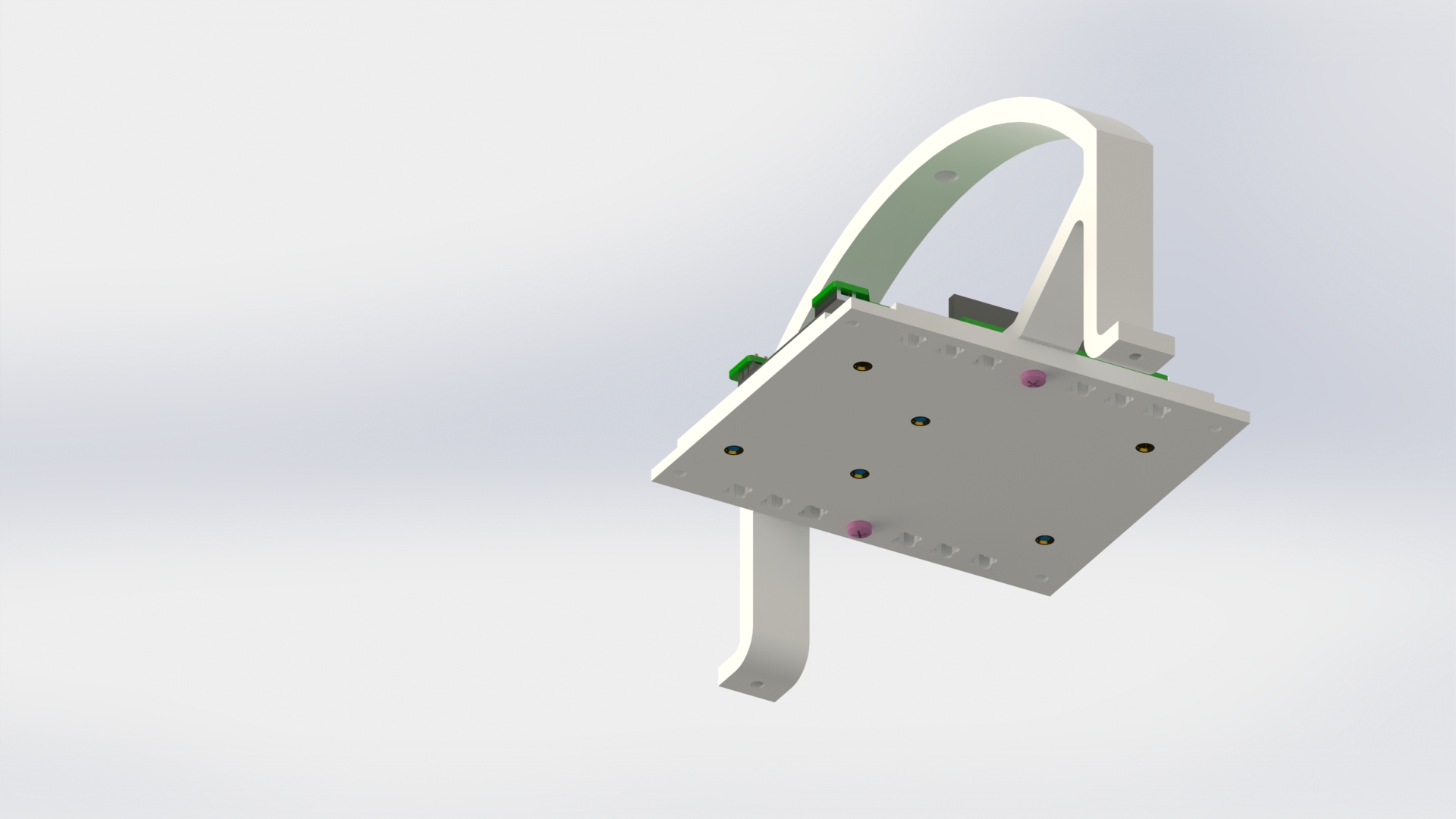

4. Screw the handle to the bottom of the payload platform with two M3x10 screws (picture 4).





   Picture 4.

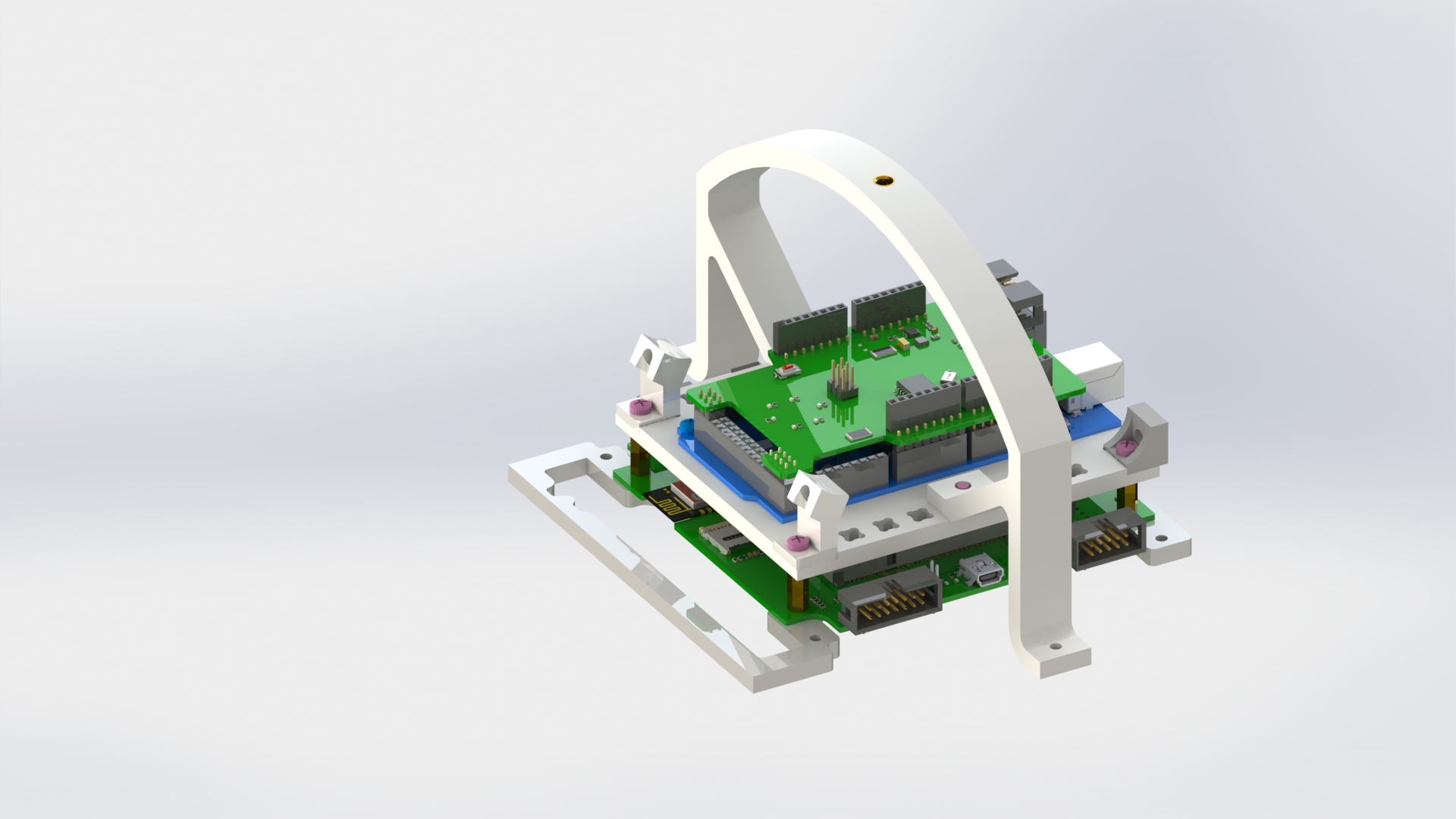

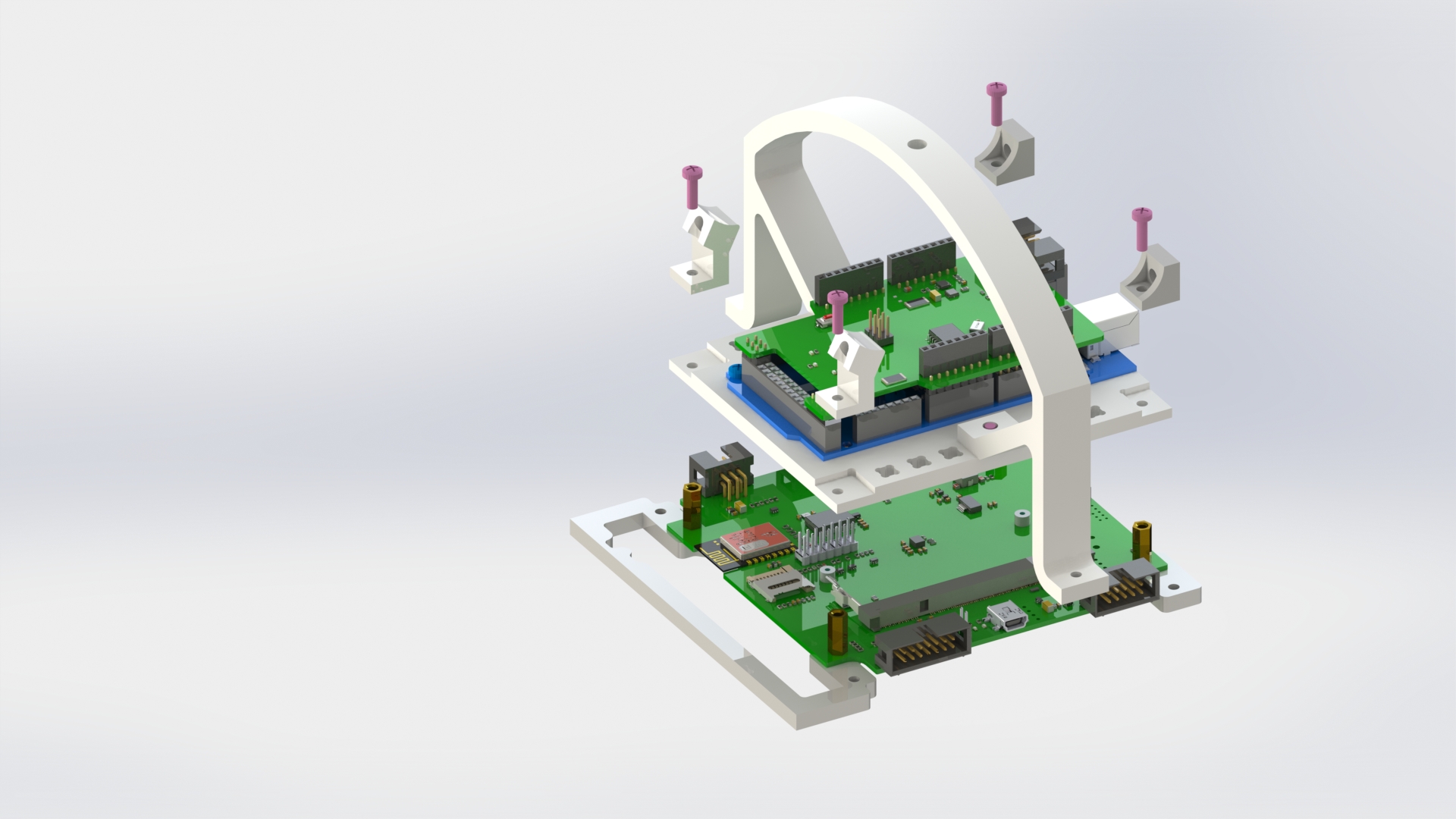

5. Using four corners and four M3x10 screws, connect the payload module to the on-board computer module (picture 5).





   Picture 5.

6. Install the solar panel board on the side using two M3x6 screws (picture 6).





   Picture 6.

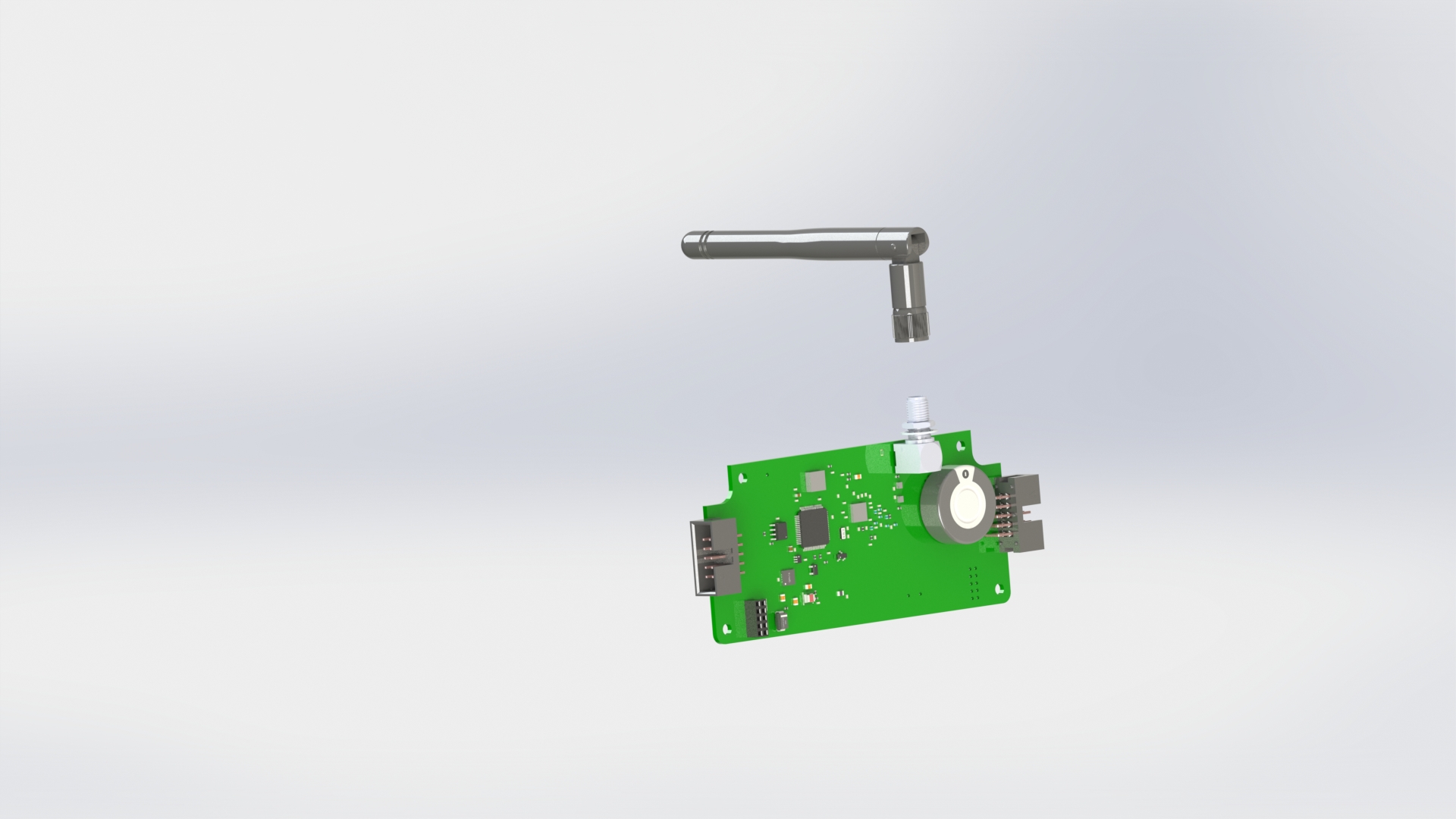

7. Screw the antenna on the UHF board (picture 7).





   Picture 7.

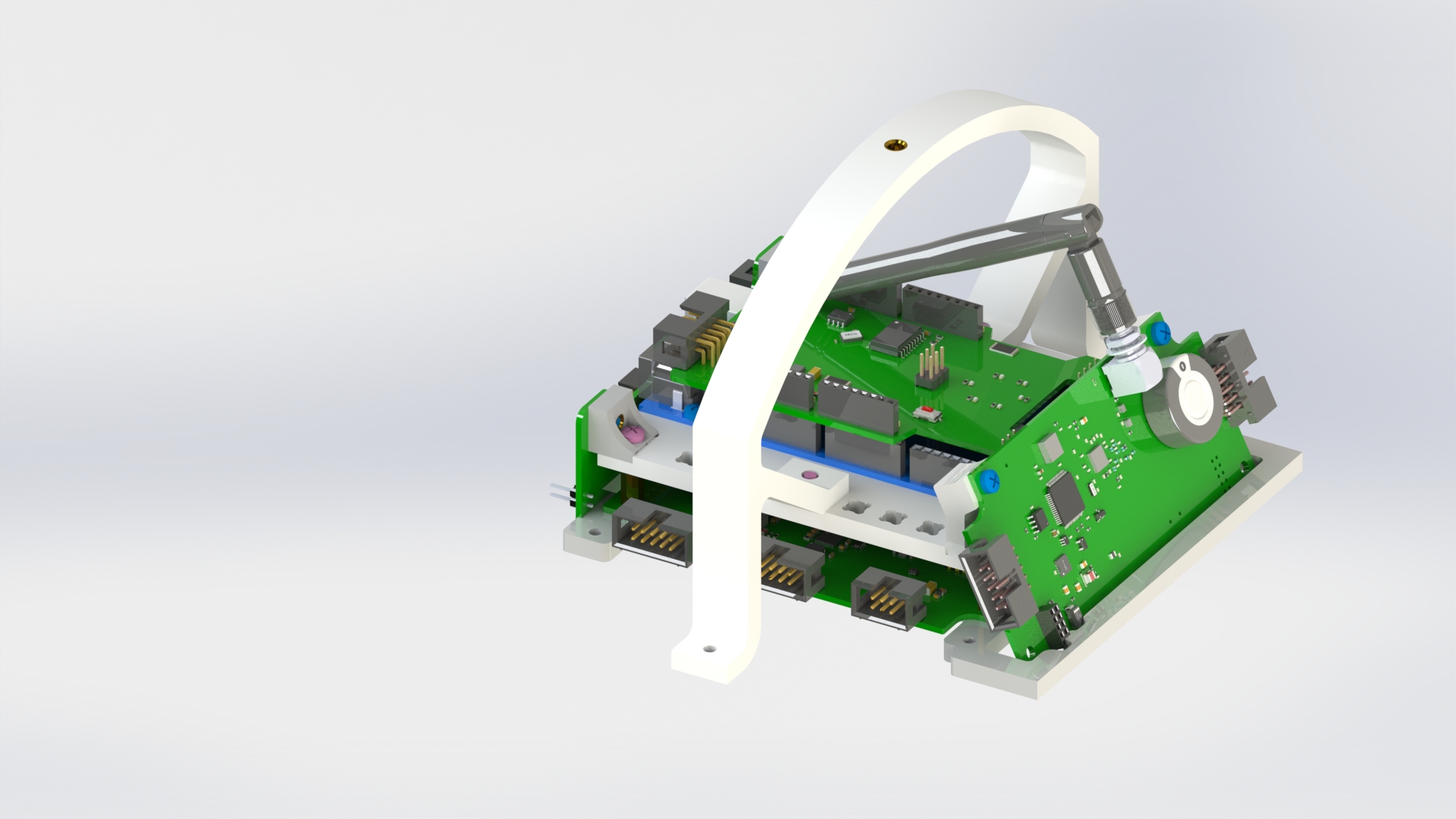

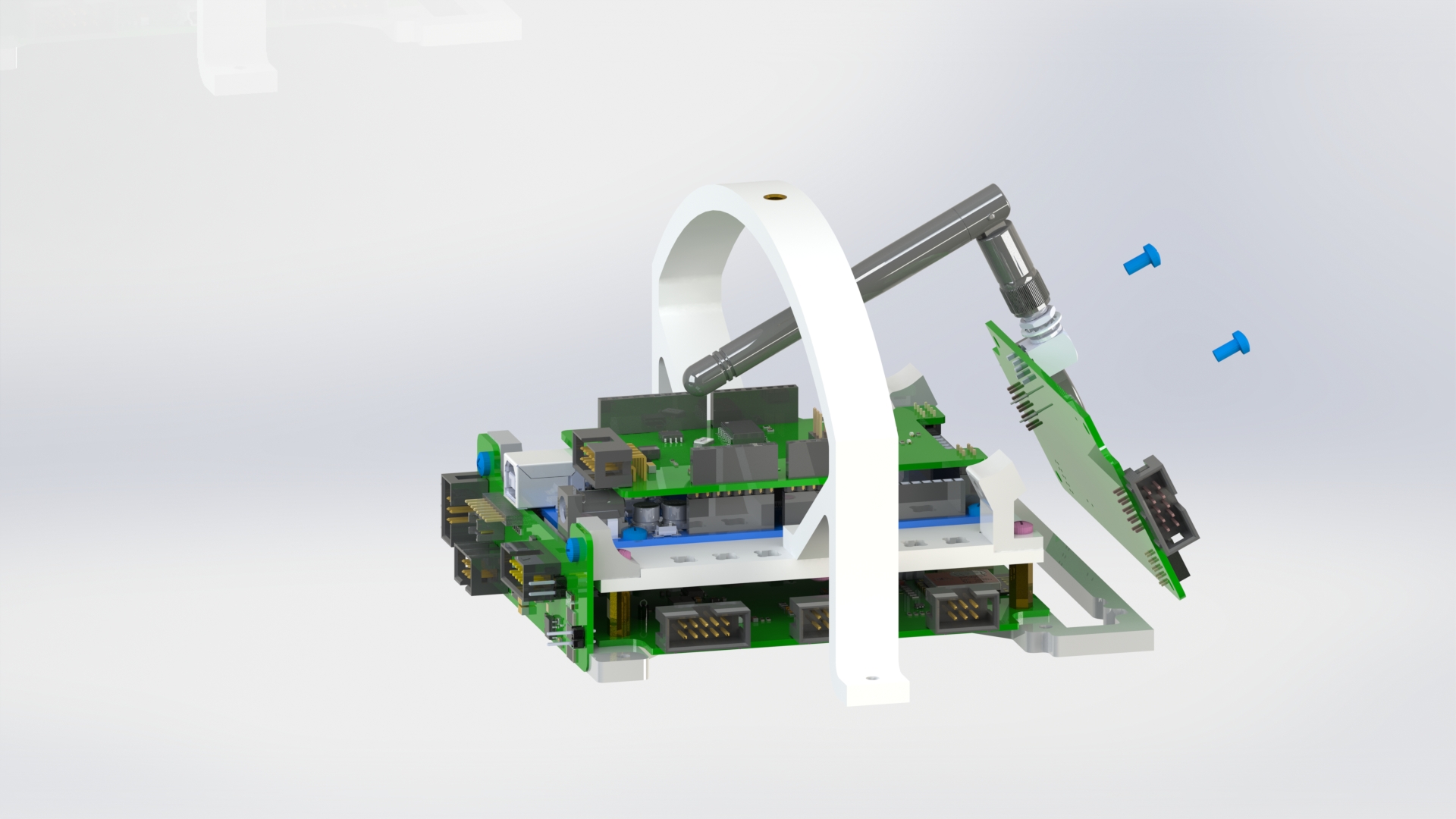

8. Install the UHF board on the side using two M3x6 screws (picture 8).





   Picture 8.
